Description
Description
93° approach for 7° positive 55° rhombic inserts.
- • Neck Length (l2) 40mm
- • Insert Cutting Edge Length 11.6mm
- • Set Type Individual Boring Bar
- Further Information
- Technical Information
- Safety Information
- Product Variants

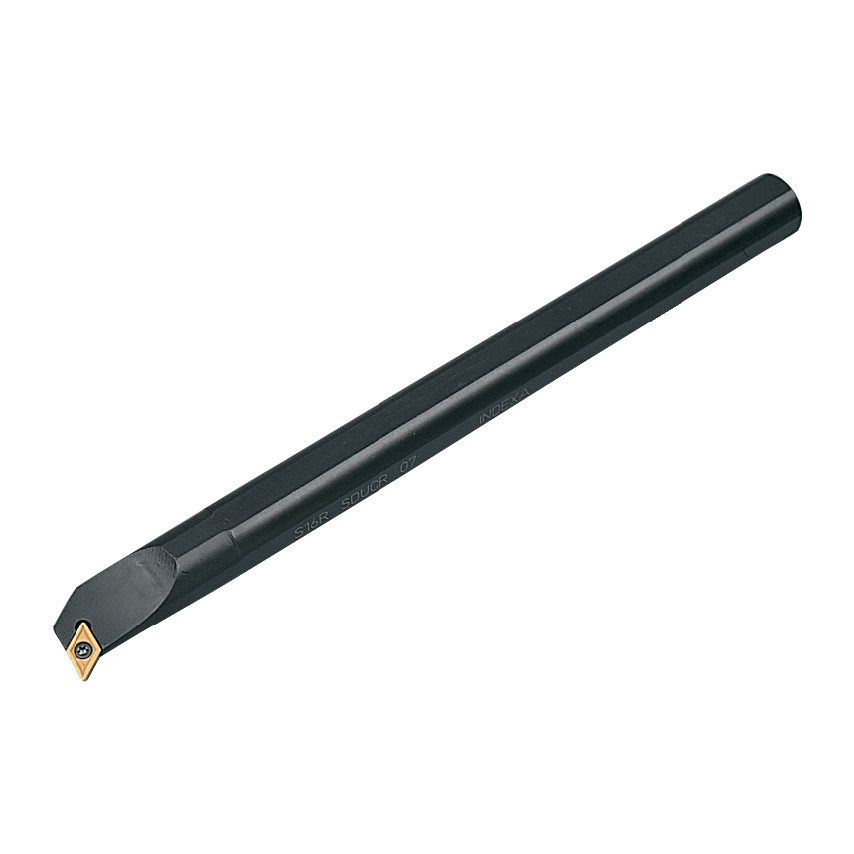

S25T SDUCL 11 BORING BAR
-

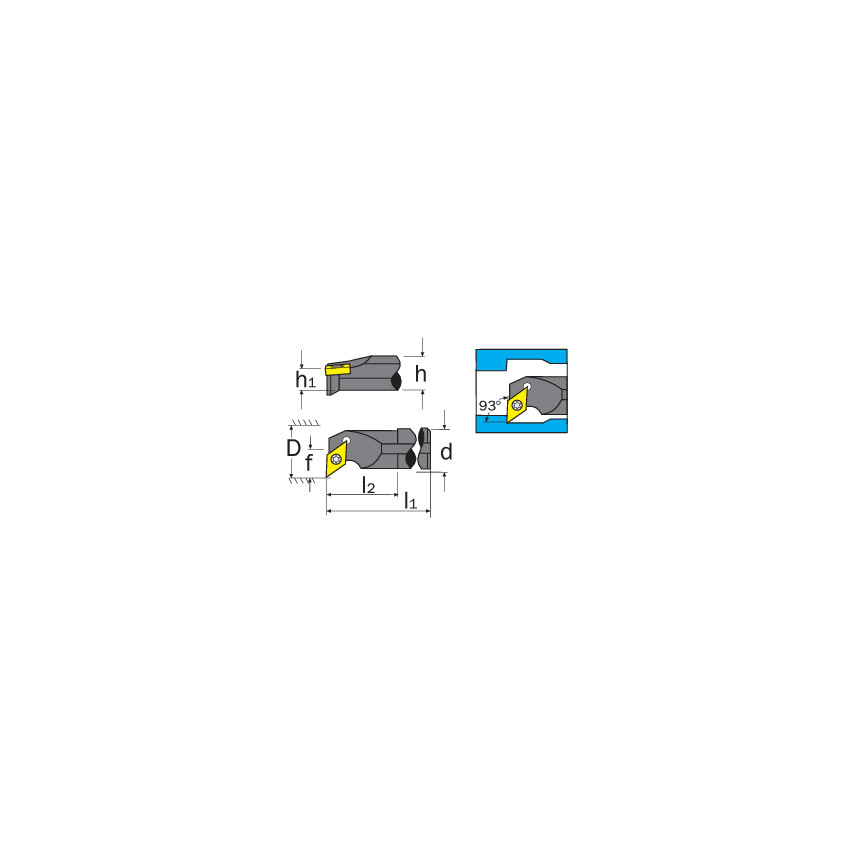

Neck Length (l2)40mm
-
Insert StylemmDC_Tmm
-
Insert Cutting Edge Length11.6mm
-
Set TypeIndividual Boring Bar
-

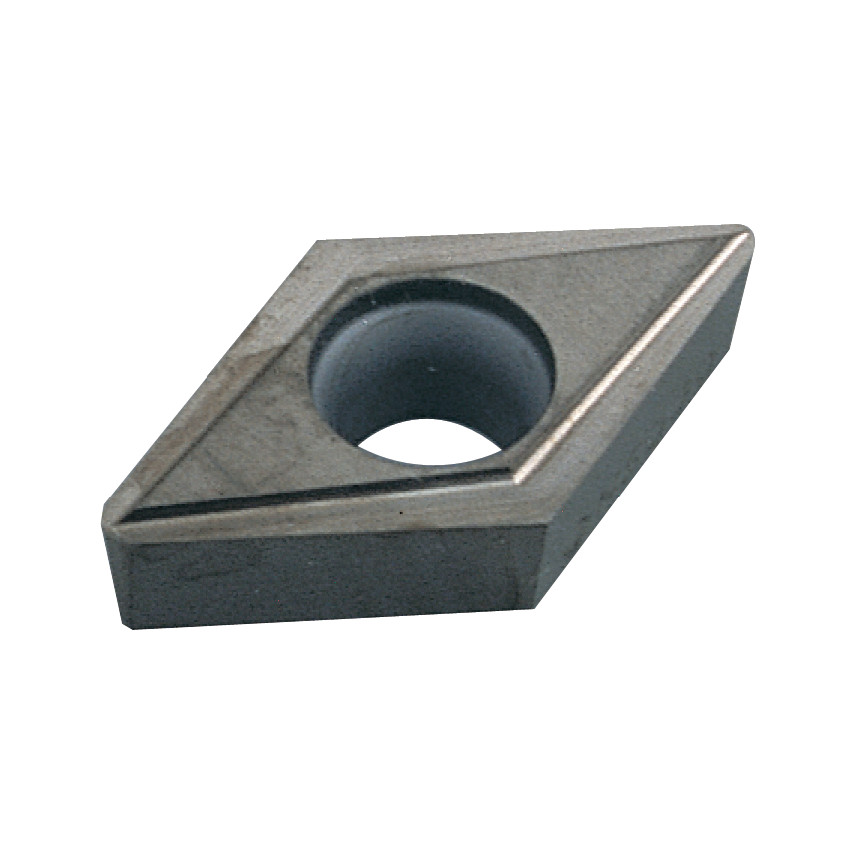

Insert Shape55° Rhombic
-
Insert Inscribed Circle9.52mm
-
Shank MaterialSteel
-
Coolant DeliveryExternal
-
Minimum Bore Diameter (D)31mm
-
Approach Angle93°
-
Inserts IncludedNone
-
Clearance Angle7°
-
Cutting Height (h1)11.5mm
-
Product NumberS25T-SDUCL11
-
Number of Bars in SetN/A
-
Toolholder StyleDC_T
-
ISO DesignationS25T SDUCL 11
-
Centre to Cutting Tip17mm
-
Insert Holding TypeScrew-On
-
Cutting DirectionLeft Hand
-
Overall Length (l1)300mm
-
Shank Diameter (d)25mm
-
Shank Height (h)23mm
-
Insert Sizemm11T3mm
