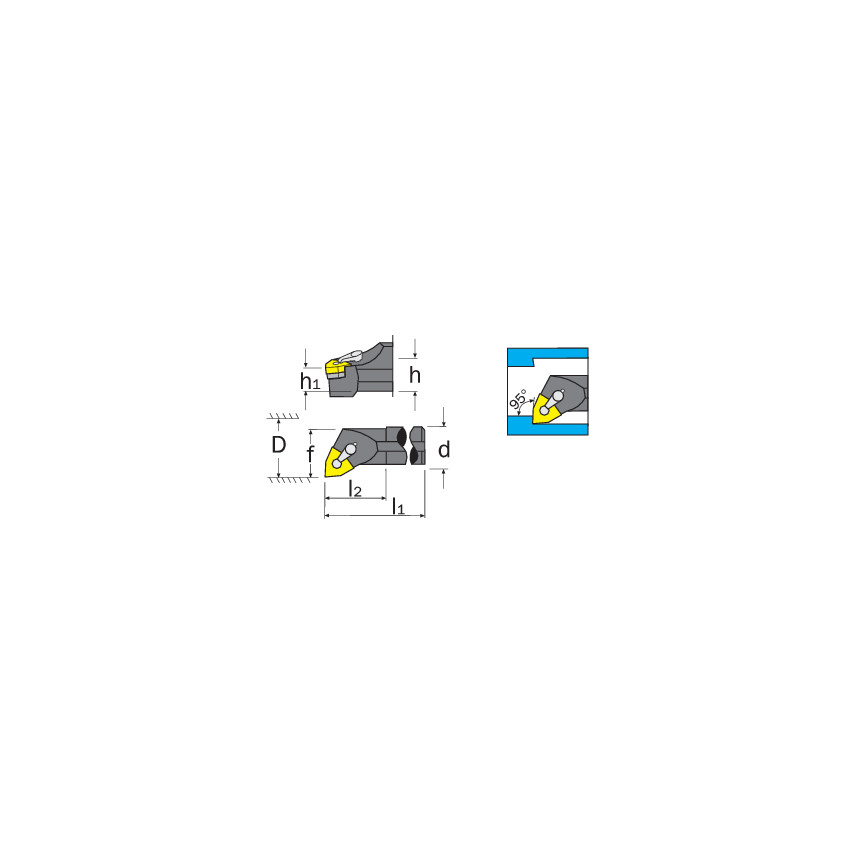

95° approach for 80° negative trigon inserts.
- • Minimum Bore Diameter (D) 31mm
- • Insert Inscribed Circle 12.7mm
- • Shank Diameter (d) 25mm
- • Cutting Height (h1) 11.5mm
- Further Information
- Product Variants

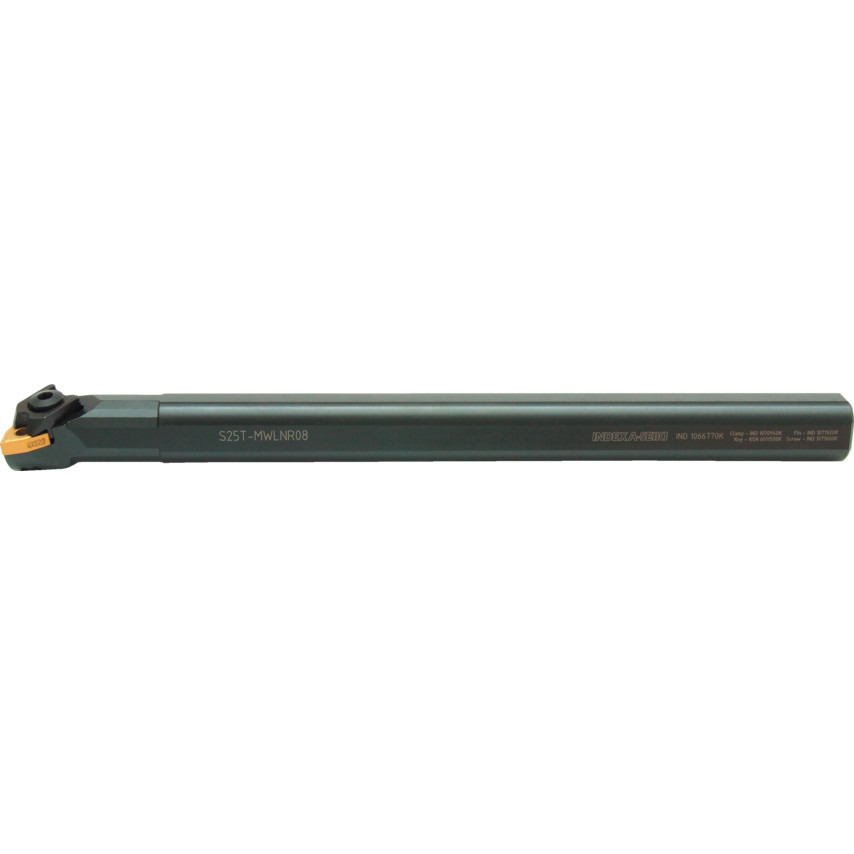

S25T MWLNL 08 BORING BAR
-
Minimum Bore Diameter (D)31mm
-
Insert Inscribed Circle12.7mm
-
Insert ShapeTrigon
-
Shank Diameter (d)25mm
-
Cutting Height (h1)11.5mm
-
ISO DesignationS25T MWLNL 08
-
Shank MaterialSteel
-
Coolant DeliveryExternal
-
Set TypeIndividual Boring Bar
-
Shank Height (h)23mm
-
Product NumberS25T-MWLNL08
-
Centre to Cutting Tip17mm
-
Neck Length (l2)40mm
-
Insert Cutting Edge Length8.7mm
-
Inserts IncludedNone
-
Number of Bars in SetN/A
-
Insert Holding TypeTop Clamp & Pin Lock
-
Insert StyleWN_AWN_G
-
Insert Size0804
-
Cutting DirectionLeft Hand
-
Clearance Angle0°
-
Toolholder StyleMWLN
-
Overall Length (l1)300mm
-
Approach Angle95°
