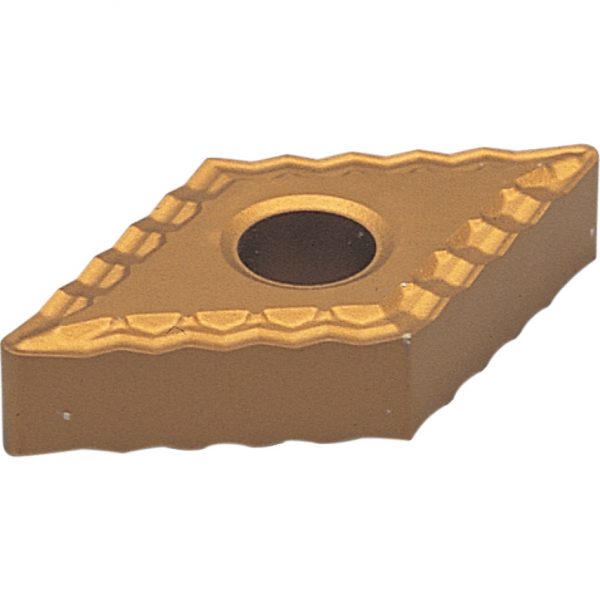

DNMG Turning Inserts 55° Rhombic Insert Insert Grades QX520 (ISO P10-P35 M10-M30 K10-K30) Coated. An excellent general purpose grade for medium roughing on Steels, Stainless and Cast Irons. Chip Breaker: NM5. Application: Med Cut. Chip Breaker: NM7. Application: Med/Rough. Chip Breaker: NR8. Application: Rough.
-
- • Manufacturer Grade QX520
- • Inscribed Circle 12.7mm
- • Insert Style DNMG
- • Corner Radius 0.8
- • Cutting Edge Length 15mm
DNMG 150408-NM7 INSERT GRADE QX520
-
Manufacturer Grade
QX520 -
Inscribed Circle
12.7mm -
Insert Style
DNMG -
Corner Radius
0.8 -
Cutting Edge Length
15mm -
Thickness
4.76mm -
Cutting Direction
Neutral -
Finish/Coating
Tin-MT-TiCN-Al2O3-TiN -
Shape
55° Rhombic -
Material Application
Cast IronStainless SteelSteel -
ISO Cut
K10 to K30M10 to M30P10 to P35 -
Insert Size
1504 -
Material
Carbide -
Chipbreaker
NM7 -
ISO Designation
DNMG 150408-NM7 -
ISO Category Grade
P, M, K -
Clearance Angle
0°
