Description
Description

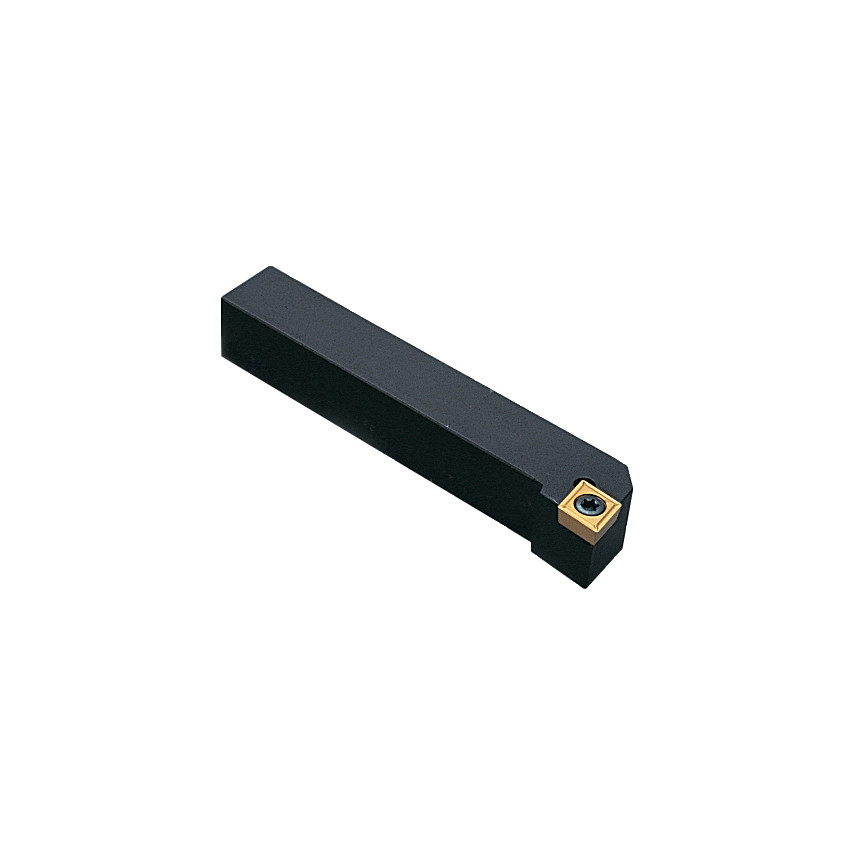

95° approach for 7° positive 80° rhombic inserts.
-
- • Set Type Individual Toolholder
- • Cutting Direction Right Hand
- • ISO Designation SCLCR 2525M12
- • Clearance Angle 7°
- • Insert Inscribed Circle 12.70mm
SCLCL 2020K12 EXTERNAL TO OLHOLDER
-
Set Type
Individual Toolholder -
Cutting Direction
Right Hand -
ISO Designation
SCLCR 2525M12 -
Clearance Angle
7° -
Insert Inscribed Circle
12.70mm -
Insert Shape
80 Rhombic -
Head Length (l2)
25mm -
Cutting Height (h1)
20mm -
Shank Height (h)
20mm -
Insert Style
CC_T -
Neck Length
25mm -
Insert Size
1204 -
Shank Width (b)
20mm -
Insert Holding Type
Screw -On -
Shank Style
Offset -
Approach Angle
95° -
Toolholder Style
SCLC -
Shank Material
Steel -
Inserts Included
None -
Product Number
SCLCL2020K12 -
Insert Cutting Edge Length
12mm -
Coolant Delivery
External -
Side to Cutting Tip (f)
25mm -
Overall Length (l1)
125mm
