Description
Description
95° approach. Uses CN_A and CN_G inserts. Tool supplied complete with 10 Carbide inserts, in a choice of P Grade for steels and general use, or K Grade for cast iron and non-ferrous applications. Inserts supplied will vary according to availability.
-
- • Insert Inscribed Circle 19.05mm
- • Cutting Direction Right Hand
- • Shank Width (b) 40mm
- • Insert Cutting Edge Length 19.3mm
- • ISO Designation PCLNR 4040S19

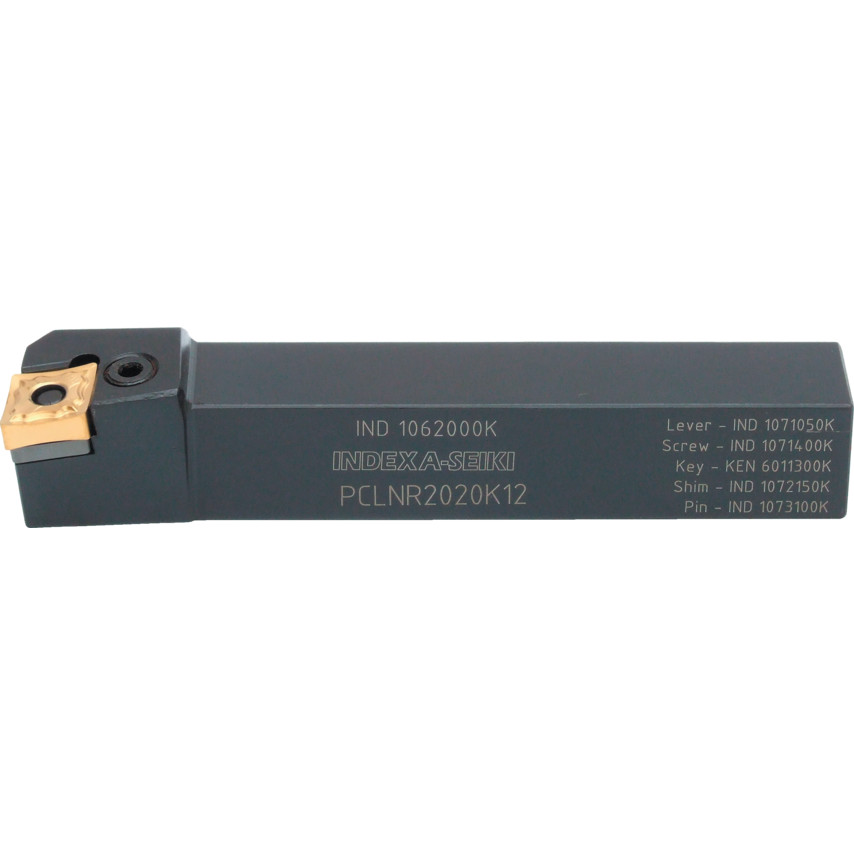

PCLNR 4040S19 C/W 10 ‘P’ STYLE INSERTS
-
Insert Inscribed Circle19.05mm
-
Cutting DirectionRight Hand
-
Shank Width (b)40
-
Insert Cutting Edge Length19.3mm
-
ISO DesignationPCLNR 4040S19
-

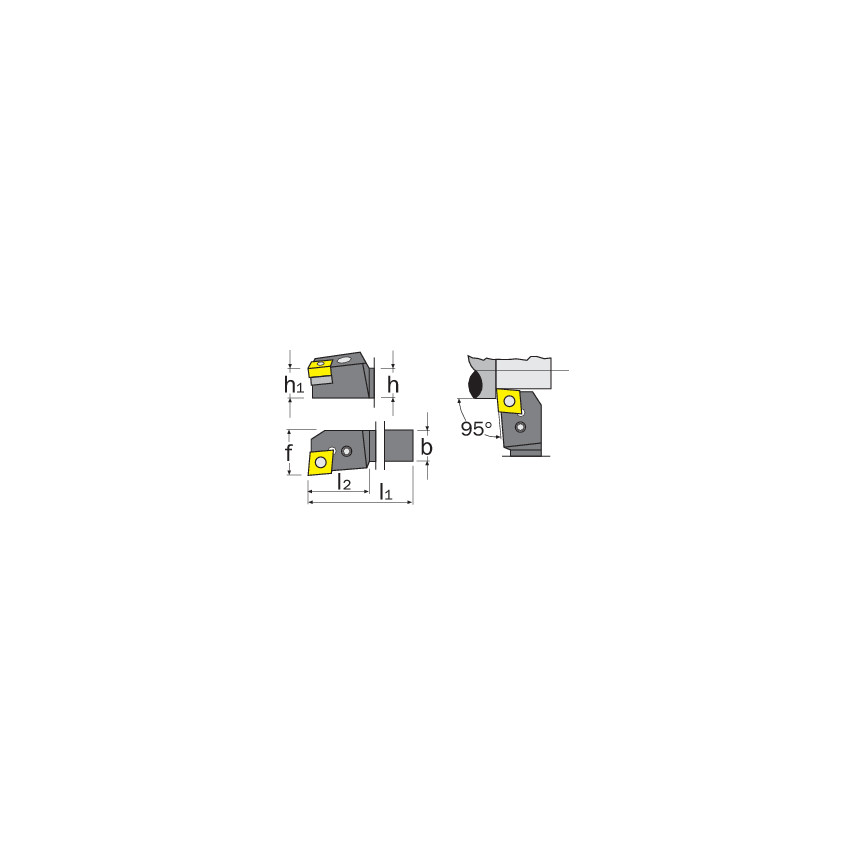

Side to Cutting Tip (f)50
-
Cutting Height40mm
-
Coolant DeliveryExternal
-
Toolholder StylePCLN
-
Insert Holding TypeLever Lock
-
Set TypeToolholder & Insert
-
Clearance Angle0°
-
Insert Size19
-
Approach Angle95°
-
Head Length (l2)45
-
Insert Shape80° Rhombic
-
Shank MaterialSteel
-

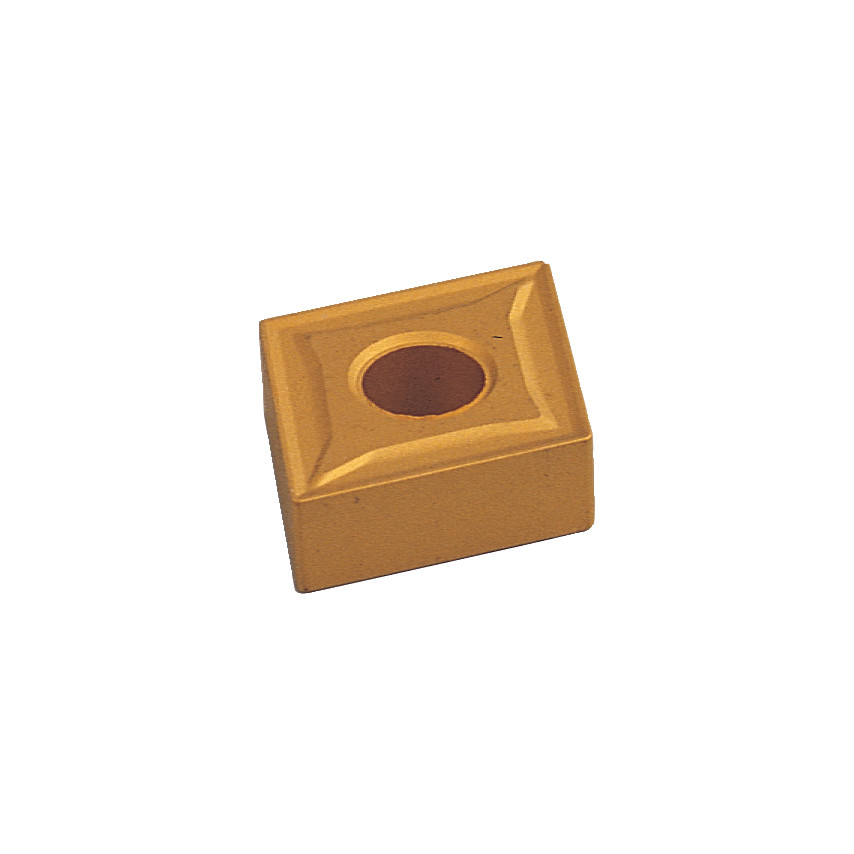

Inserts Included(10)Carbide P Grade CN_A/CN_G Inserts
-
Insert StyleCN_ACN_G
-
Shank Height40mm
-
Overall Length250mm
