Description
Description
90° approach for 7° positive triangular inserts.
-
- • Set Type Individual Toolholder
- • Cutting Direction Left Hand
- • ISO Designation STGCL 2020K16
- • Clearance Angle 7°
- • Insert Inscribed Circle 9.52mm

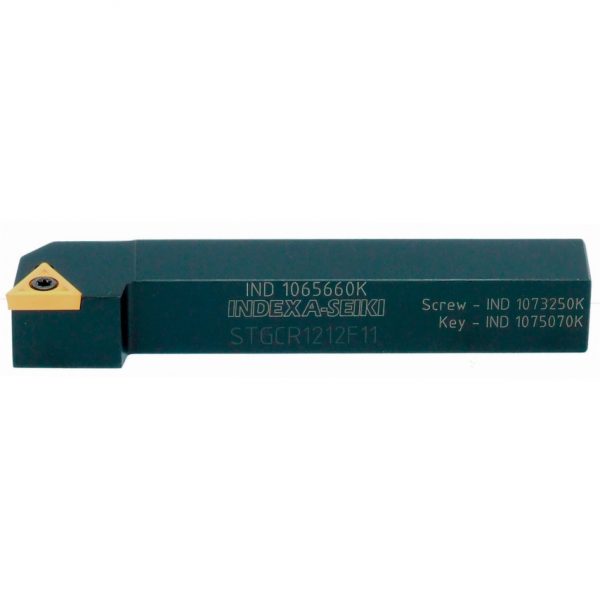

STGCR 2020K16 EXTERNAL TO OLHOLDER
-
Set Type
Individual Toolholder -
Cutting Direction
Left Hand -
ISO Designation
STGCL 2020K16 -
Clearance Angle
7° -
Insert Inscribed Circle
9.52mm -
Insert Shape
Triangular -

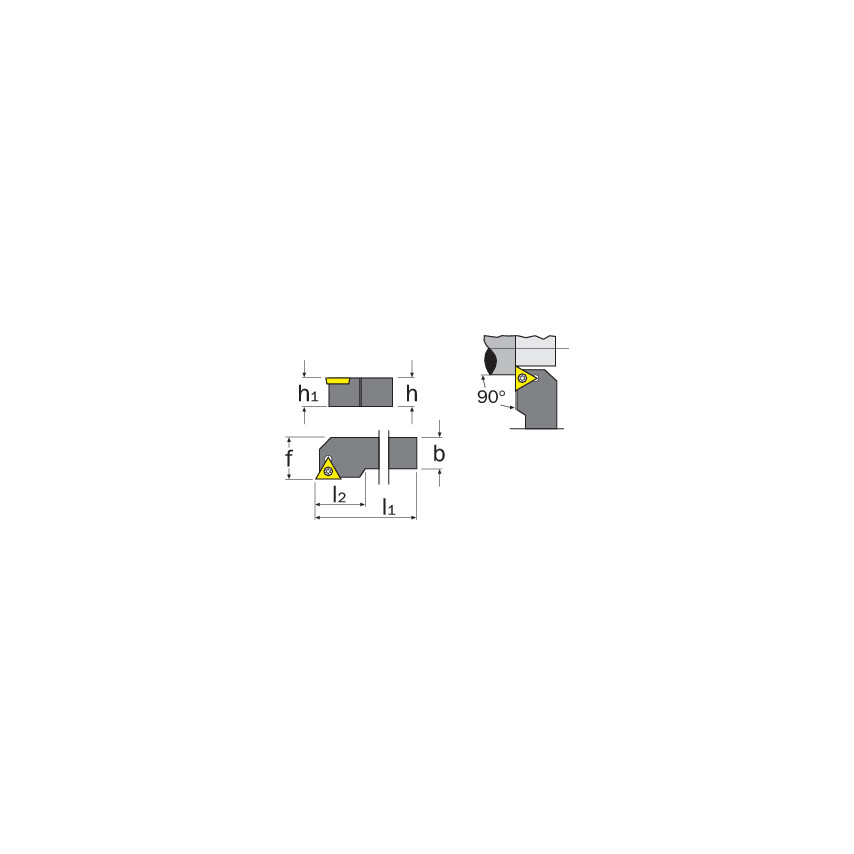

Head Length (l2)
22mm -
Cutting Height (h1)
20mm -
Shank Height (h)
20mm -
Insert Style
TC_T -
Neck Length
22mm -
Insert Size
16T3 -
Shank Width (b)
20mm -
Insert Holding Type
Screw -On -
Shank Style
Offset -
Approach Angle
90° -
Toolholder Style
STGC -
Shank Material
Steel -
Inserts Included
None -
Product Number
STGCR2020K16 -
Insert Cutting Edge Length
16mm -
Coolant Delivery
External -
Side to Cutting Tip (f)
25mm -
Overall Length (l1)
125mm
