Description
90° approach for negative triangular inserts.
- • Number of Bars in Set N/A
- • Clearance Angle 0°

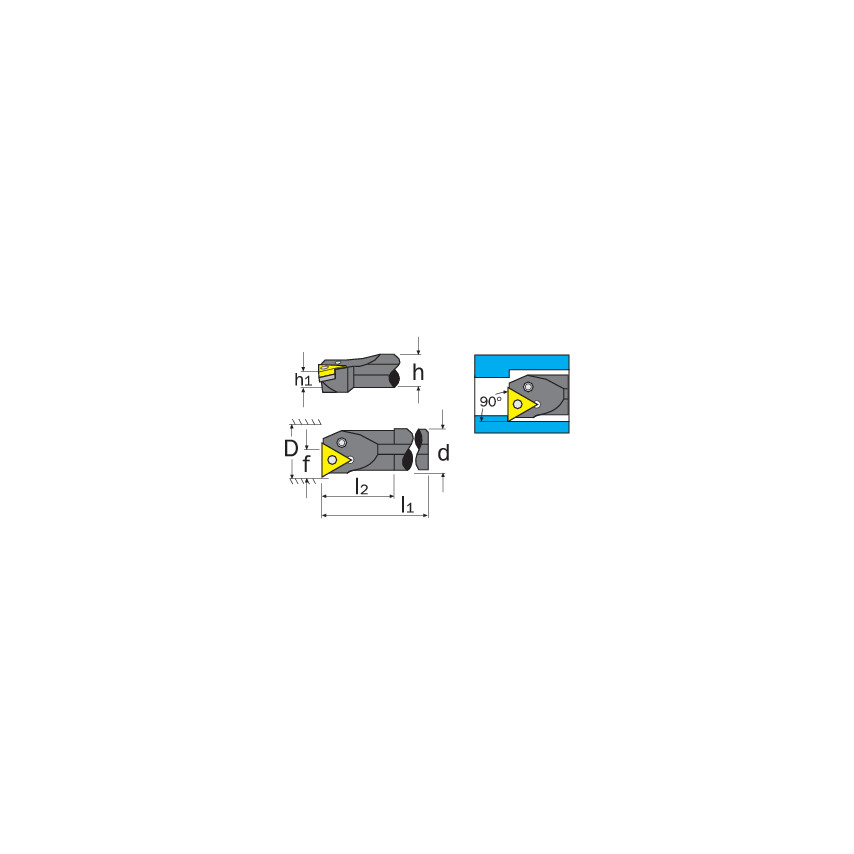

- • Minimum Bore Diameter (D) 31mm
- • Shank Diameter (d) 25mm

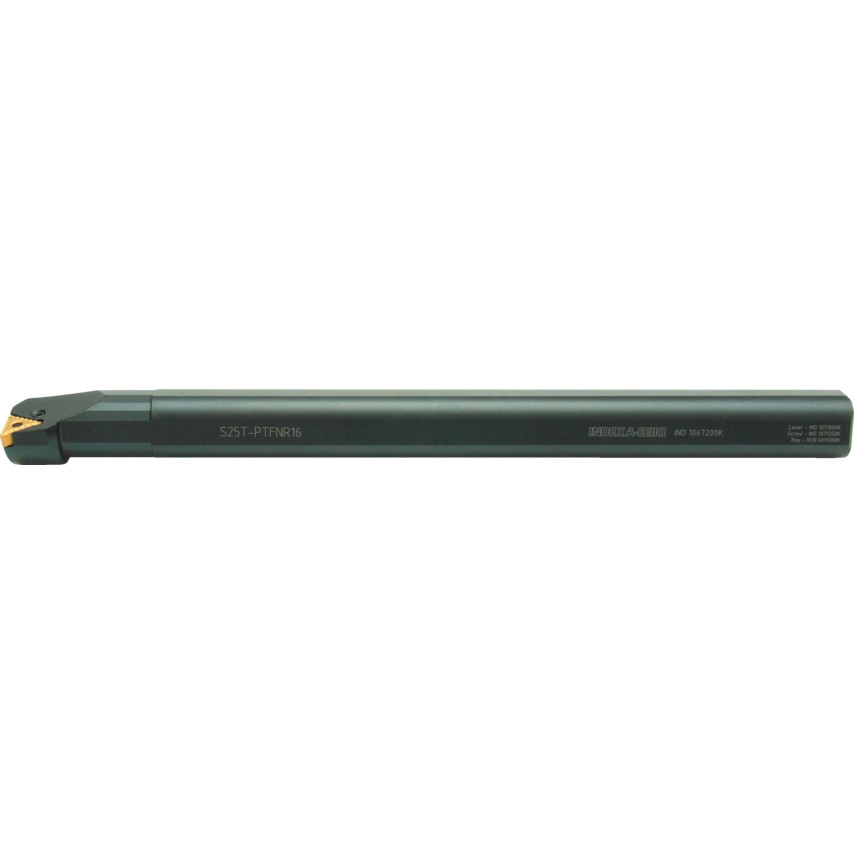

S25T PTFNR 16 BORING BAR
-
Inserts IncludedNone
-
Number of Bars in SetN/A
-
Clearance Angle0°
-
Minimum Bore Diameter (D)31mm
-
Shank Diameter (d)25mm
-
Set TypeIndividual Boring Bar
-
ISO DesignationS25T PTFNR 16
-

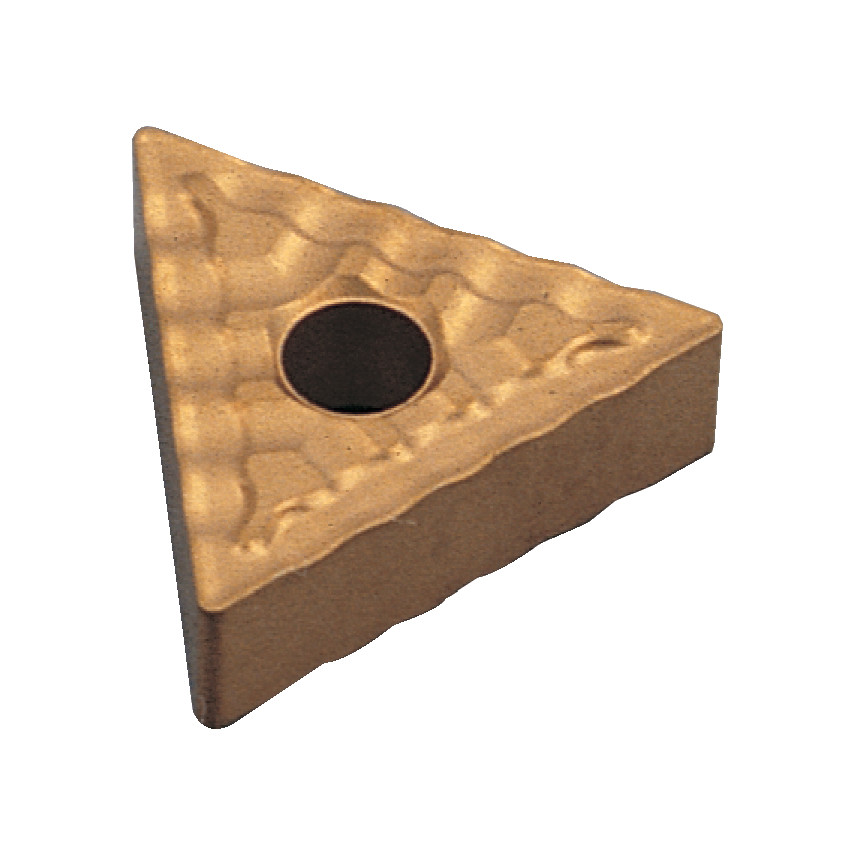

Insert StyleTN_G
-
Insert Inscribed Circle9.52mm
-
Approach Angle90°
-
Cutting DirectionRight Hand
-
Insert Cutting Edge Length16.5mm
-
Toolholder StylePTFN
-
Overall Length (l1)300mm
-
Coolant DeliveryExternal
-
Neck Length (l2)40mm
-
Centre to Cutting Tip17mm
-
Shank MaterialSteel
-
Cutting Height (h1)11.5mm
-
Insert Holding TypeLever Lock
-
Insert Size1604
-
Shank Height (h)23mm
-
Product NumberS25T-PTFNR16
-
Insert ShapeTriangle
