45° offset approach for negative square inserts.
-
- • Insert Inscribed Circle 12.7mm
- • Cutting Direction Left Hand
- • Shank Width (b) 25mm
- • Insert Cutting Edge Length 12mm
- • Centre to Cutting Tip 32mm

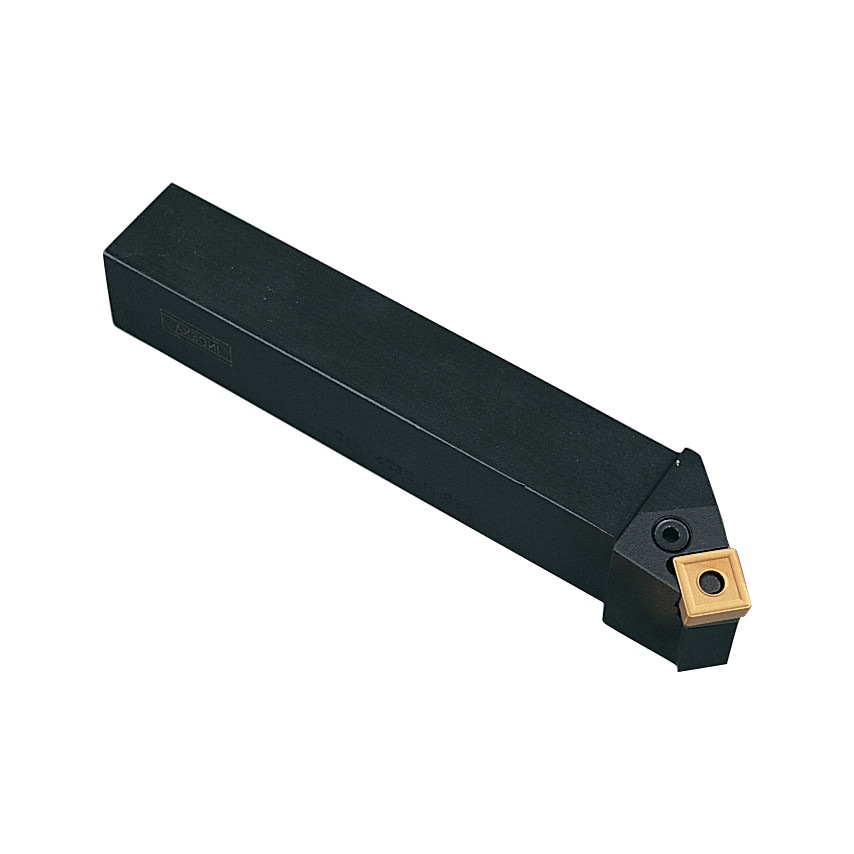

PSSNL 2525M12 EXTERNAL TO OLHOLDER
-
Insert Inscribed Circle
12.7mm -
Cutting Direction
Left Hand -
Shank Width (b)
25 -
Insert Cutting Edge Length
12mm -
Centre to Cutting Tip
32mm -
ISO Designation
PSSNL 2525M12 -
Side to Cutting Tip (f)
32 -
Cutting Height
25mm -
Coolant Delivery
External -
Toolholder Style
PSSN -
Insert Holding Type
Lever Lock -
Set Type
Individual Toolholder -
Clearance Angle
0° -
Product Number
PSSNL2525M12 -
Neck Length
28mm -
Insert Size
1204 -
Approach Angle
45° -
Head Length (l2)
28 -
Insert Shape
Square -
Shank Material
Steel -
Inserts Included
None -
Insert Style
SN_ASN_G -
Shank Height
25mm -
Overall Length
150mm
