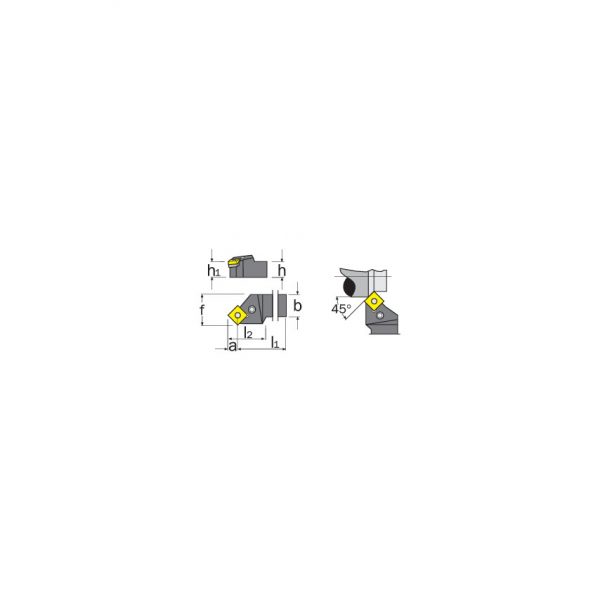

45° offset approach for negative square inserts.
-
- • Insert Inscribed Circle 12.7mm
- • Cutting Direction Right Hand
- • Shank Width (b) 20mm
- • Insert Cutting Edge Length 12mm
- • Centre to Cutting Tip 25mm
PSSNR 2020K12 EXTERNAL TO OLHOLDER
-
Insert Inscribed Circle12.7mm
-
Cutting DirectionRight Hand
-
Shank Width (b)20
-
Insert Cutting Edge Length12mm
-
Centre to Cutting Tip25mm
-
ISO DesignationPSSNR 2020K12
-
Side to Cutting Tip (f)25
-
Cutting Height20mm
-
Coolant DeliveryExternal
-
Toolholder StylePSSN
-
Insert Holding TypeLever Lock
-
Set TypeIndividual Toolholder
-
Clearance Angle0°
-
Product Number106-3540
-
Neck Length28mm
-
Insert Size1204
-
Approach Angle45°
-
Head Length (l2)28
-
Insert ShapeSquare
-
Shank MaterialSteel
-
Inserts IncludedNone
-
Insert StyleSN_ASN_G
-
Shank Height20mm
-
Overall Length125mm
