Description
Description
95° approach for 7° positive 80° rhombic inserts.
-
- • Set Type Individual Toolholder
- • Cutting Direction Left Hand
- • ISO Designation SCLCL 2020K09
- • Clearance Angle 7°
- • Insert Inscribed Circle 9.52mm

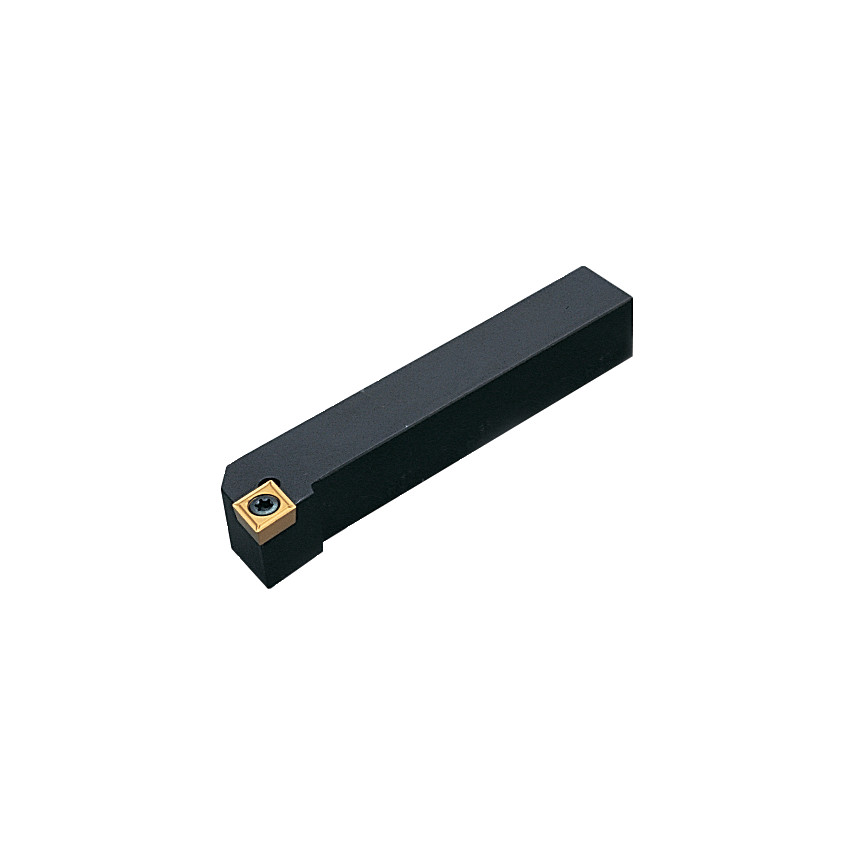

SCLCR 2020K09 EXTERNAL TO OLHOLDER
-
Set Type
Individual Toolholder -
Cutting Direction
Left Hand -
ISO Designation
SCLCL 2020K09 -
Clearance Angle
7° -
Insert Inscribed Circle
9.52mm -
Insert Shape
80 Rhombic -

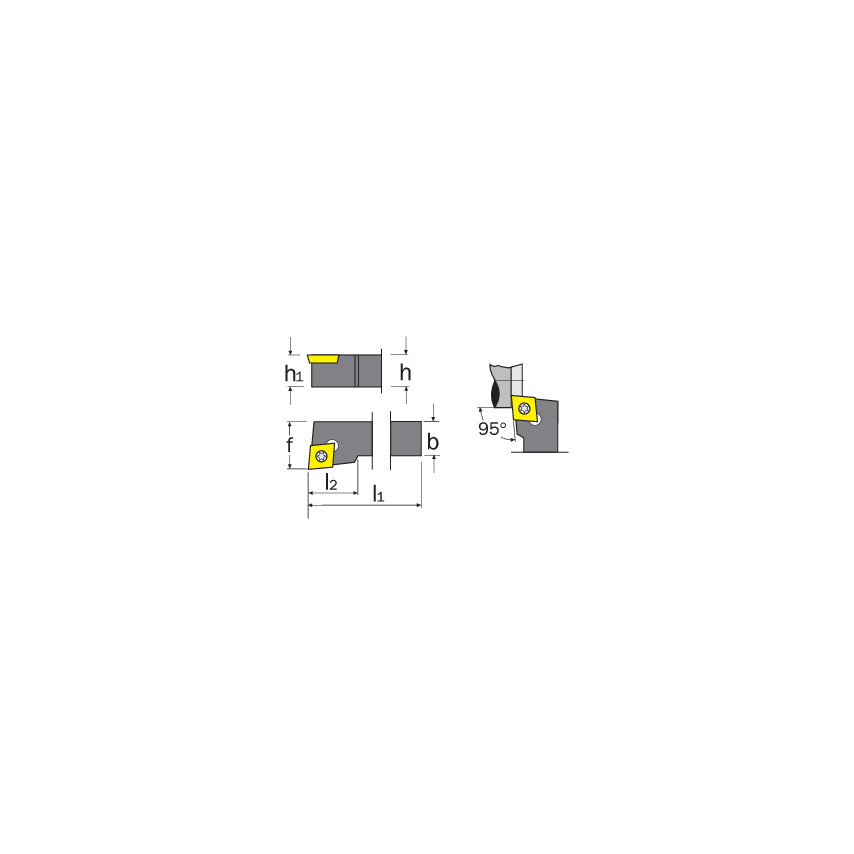

Head Length (l2)
20.5mm -
Cutting Height (h1)
20mm -
Shank Height (h)
20mm -
Insert Style
CC_T -
Neck Length
20.5mm -
Insert Size
09T3 -
Shank Width (b)
20mm -
Insert Holding Type
Screw -On -
Shank Style
Offset -
Approach Angle
95° -
Toolholder Style
SCLC -
Shank Material
Steel -
Inserts Included
None -
Insert Cutting Edge Length
9mm -
Coolant Delivery
External -
Side to Cutting Tip (f)
25mm -
Overall Length (l1)
125mm
