Description
Description
45° straight approach for negative square inserts.
-
- • Insert Inscribed Circle 12.7mm
- • Cutting Direction Neutral
- • Shank Width (b) 25mm
- • Insert Cutting Edge Length 12mm
- • Centre to Cutting Tip 12.5mm

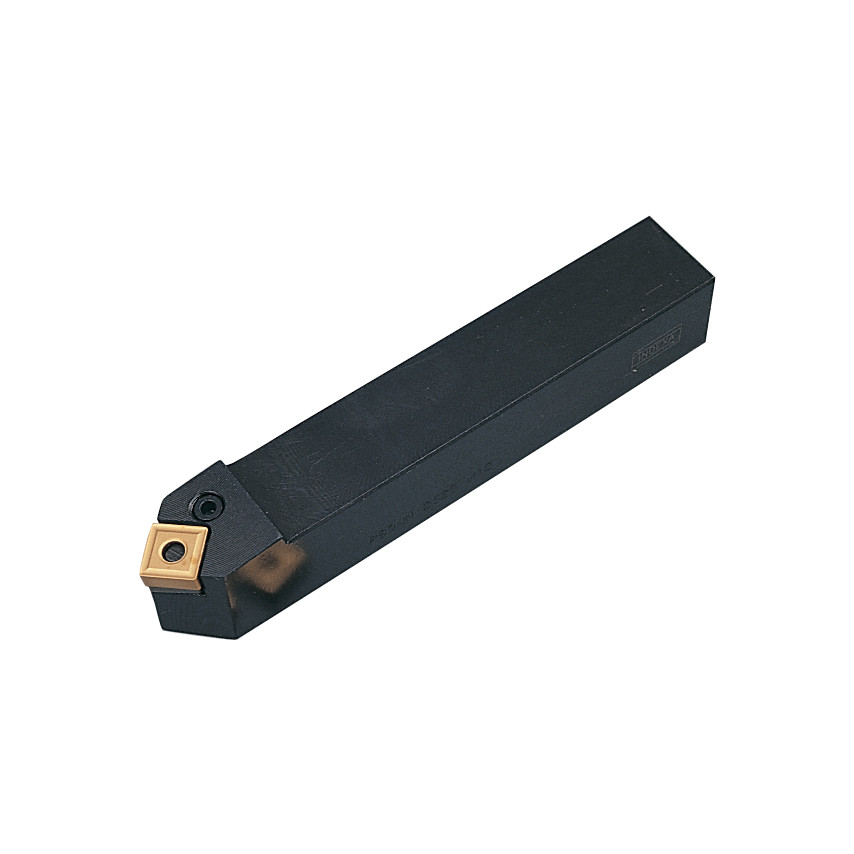

PSDNN 2525M12 EXTERNAL TO OLHOLDER
-
Insert Inscribed Circle12.7mm
-
Cutting DirectionNeutral
-
Shank Width (b)25
-
Insert Cutting Edge Length12mm
-
Centre to Cutting Tip12.5mm
-
ISO DesignationPSDNN 2525M12
-
Side to Cutting Tip (f)12.5
-
Cutting Height25mm
-
Coolant DeliveryExternal
-
Toolholder StylePSDN
-
Insert Holding TypeLever Lock
-
Set TypeIndividual Toolholder
-
Clearance Angle0°
-
Product NumberPSDNN2525M12
-
Neck Length28mm
-
Insert Size1204
-
Approach Angle45°
-
Head Length (l2)28
-
Insert ShapeSquare
-
Shank MaterialSteel
-
Inserts IncludedNone
-
Insert StyleSN_ASN_G
-
Shank Height25mm
-
Overall Length150mm
