Description
Description
93° approach for 55° negative rhombic inserts.
- • Number of Bars in Set N/A
- • Clearance Angle 0°

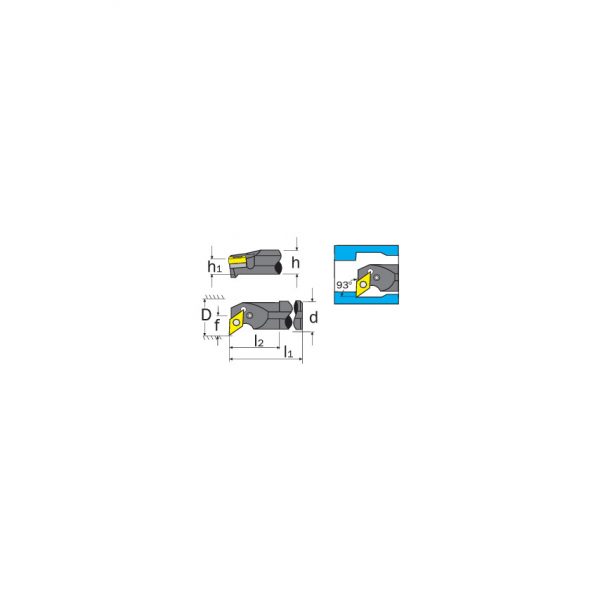

- • Minimum Bore Diameter (D) 39mm
- • Shank Diameter (d) 32mm

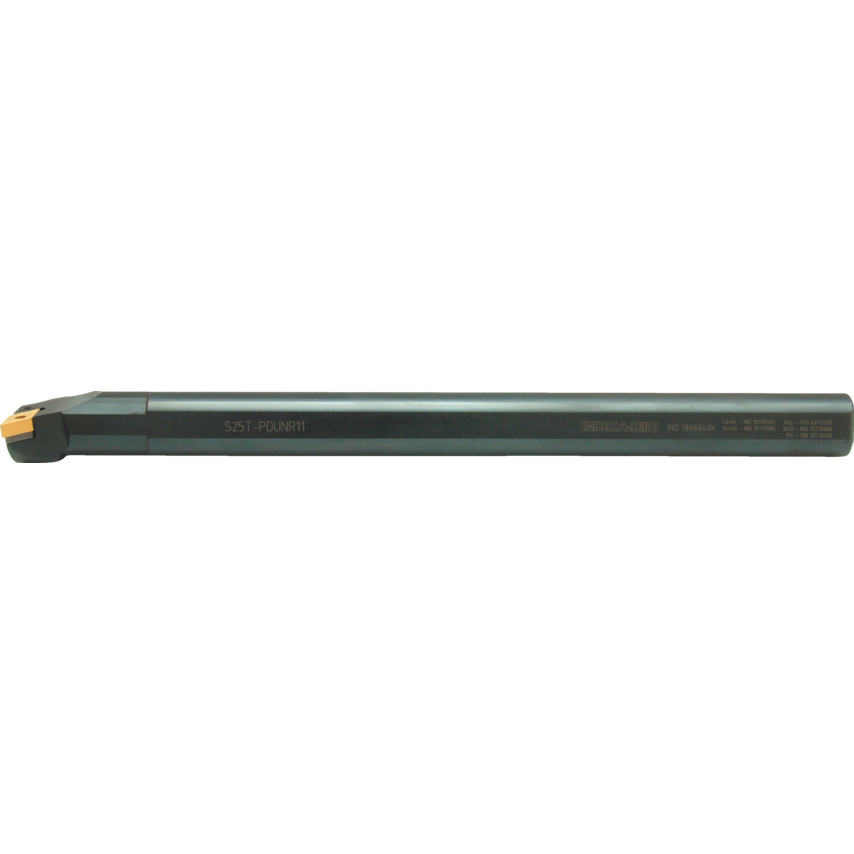

S32U PDUNR 15 BORING BAR
-
Inserts Included
None -
Number of Bars in Set
N/A -
Clearance Angle
0° -
Minimum Bore Diameter (D)
39mm -
Shank Diameter (d)
32mm -
Set Type
Individual Boring Bar -
ISO Designation
S32U PDUNR 15 -
Insert Style
DN_ADN_G -
Insert Inscribed Circle
12.7mm -
Approach Angle
93° -
Cutting Direction
Right Hand -
Insert Cutting Edge Length
15.5mm -
Toolholder Style
PDUN -
Overall Length (l1)
350mm -
Coolant Delivery
External -
Neck Length (l2)
50mm -
Centre to Cutting Tip
22mm -
Shank Material
Steel -
Cutting Height (h1)
15mm -
Insert Holding Type
Lever Lock -
Insert Size
1506 -
Shank Height (h)
30mm -
Product Number
S32U-PDUNR15 -

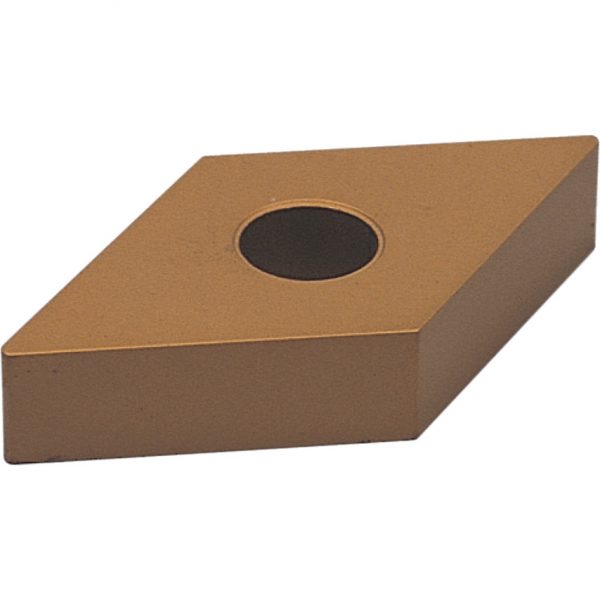

Insert Shape
55° Rhombic
