Description

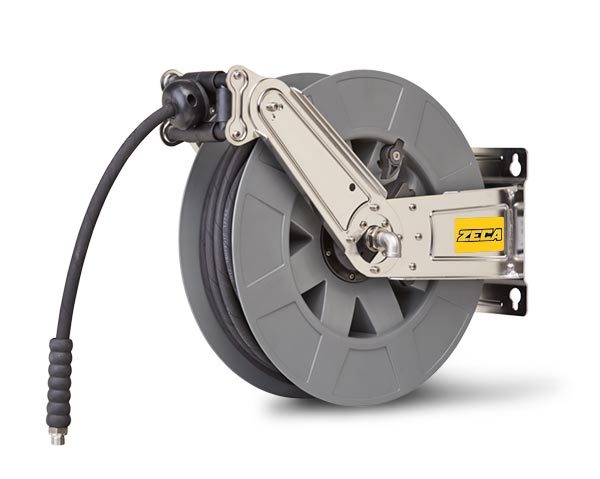

The Light Stainless Steel hose reels are perfect to a variety of applications, from the food industry to the boating industry and the chemical sector, heavy duty work environments with corrosive atmosphere. They are the ideal for industrial cleaning, blowing operations and transports of fluids such as air, water, oil and diesel.
Even more fluids
 |
Air |
 |
High pressure water |
 |
Hot water |
 |
Oil |
 |
Diesel |
TECHNICAL DATA
- Brackets in Stainless Steel AISI 304
- Screws and bolts in Stainless Steel AISI 316L
- Incomig fitting in brass
- End pipe fitting in brass/steel
- Rotating shaft in brass/Stainless Steel AISI 304
- Coil shaft in steel, bushings and ring nuts in brass
- Automatic blocking device for the hose at the required length
- Reel roller hose guide that can be moved in different configurations to help the reeling of the hose
- Adjustable hose stopper
| Art. |
Hose int. Ø (mm)
|
Hose (m)
|
Hose type
|
Incoming fitting
|
End pipe fitting
|
Max press
(bar) |
Use
|
|
|---|---|---|---|---|---|---|---|---|
| 8401/1003 | without hose | 1/2″ F | 1/2″ F | 20 | AIR WATER | |||
| 8404/1000 | 10 (3/8″) |
12 | SAE 100R6 | 1/2″ F | 3/8″ M | 20 | AIR WATER | |
| 8406/1000 | 10 (3/8″) |
18 | SAE 100R6 | 1/2″ F | 3/8″ M | 20 | AIR WATER | |
| 8426/1002 | 12,5 (1/2″) |
15 | KPU | 1/2″ F | 1/2″ M | 20 | AIR WATER | |
| 8427/1002 | 12,5 (1/2″) |
20 | KPU | 1/2″ F | 1/2″ M | 20 | AIR WATER | |
| 8432/1001 | 12,5 (1/2″) |
12 | PU – FOOD QUALITY* | 1/2″ F | 1/2″ M | 15 | WATER | |
| 8440/1003 | without hose | 3/8″ F | 1/2″ F | 200 | OIL WATER | |||
| 8442/1000 | 10 (3/8″) |
15 | EN857 1 SC Black | 3/8″ F | 3/8″ F | 200 | OIL WATER | |
| 8443/1000 | 10 (3/8″) |
18 | EN857 1 SC Black | 3/8″ F | 3/8″ F | 200 | OIL WATER | |
| 8446/1000 | 10 (3/8″) |
15 | EN857 1 SC Blue | 3/8″ F | 3/8″ F | 200 | OIL WATER | |
| 8448/1000 | 10 (3/8″) |
18 | EN857 1 SC Blue | 3/8″ F | 3/8″ F | 200 | OIL WATER |
