Description
TECHNICAL DATA

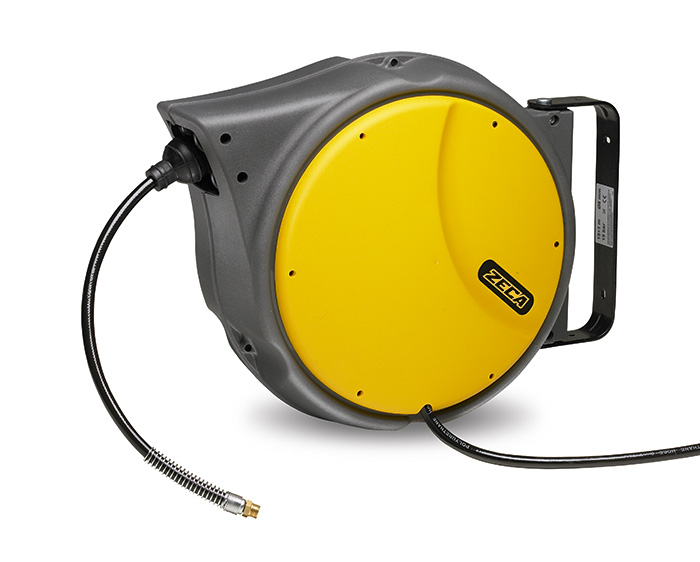

- Technopolymer casing.
- Complete with pivot bracket.
- Provided with hose ratchet stop device, easily removable if constant traction is required.
- Suitable for air transmission.
Art. |
Hose int. Ø (mm)
|
Hose (m)
|
Incoming fitting
|
End pipe fitting
|
Max press
(bar) |
Use
|
|
---|---|---|---|---|---|---|---|
AM80/8 | 8 (5/16″) |
10 | NO | 1/4″ M | 15 | AIR | |
AM85/8 | 8 (5/16″) |
16 | NO | 1/4″ M | 15 | AIR | |
AM85/10 | 10 (3/8″) |
16 | NO | 3/8″ M | 15 | AIR |
