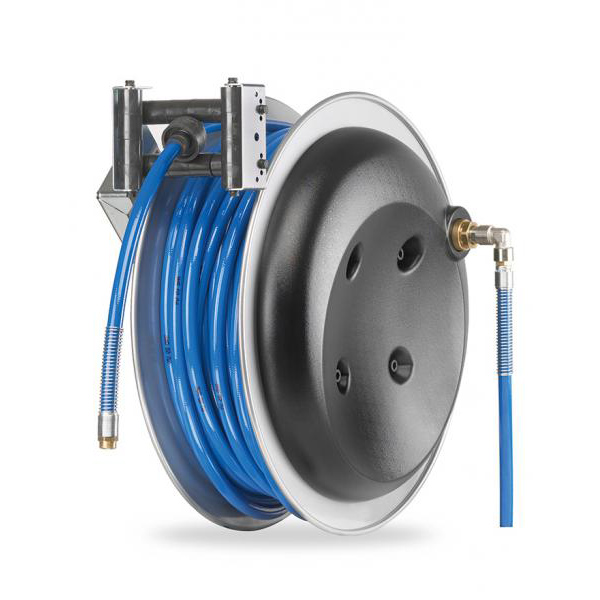

Description
TECHNICAL DATA
- Aluminium and painted steel case
- Side fastening aluminium bracket with ratchet (these hose reels are delivered with disconnected ratchet, and it can easily inserted by user before the installation)
- Roller hose-guide
- Air transmission pivoting joint without slotting
- Steel springs suitable to grant the optimum hose traction and a long life
All the items are available also without hose
Art. |
Hose int. Ø (mm)
|
Hose (m)
|
Hose type
|
Incoming fitting
|
End pipe fitting
|
Max press
(bar) |
Use
|
|
---|---|---|---|---|---|---|---|---|
8911 | 8 (5/16″) |
45 + 2 | KPU | X | 1/4″ | 20 | AIR WATER | |
8921 | 10 (3/8″) |
32 | KPU | NO | 3/8″ M | 20 | AIR WATER | |
8922 | 10 (3/8″) |
42 | KPU | NO | 3/8″ M | 20 | AIR WATER | |
8931 | 12.5 (1/2″) |
32 | KPU | NO | 1/2″ M | 20 | AIR WATER | |
8932 | 12.5 (1/2″) |
42 | KPU | NO | 1/2″ M | 20 | AIR WATER | |
8941 | 19 (3/4″) |
17 | PVC | NO | 3/4″ M | 10 | AIR WATER | |
8951 | 25 (1″) |
10 | PVC | NO | 1″ M | 10 | AIR WATER |
