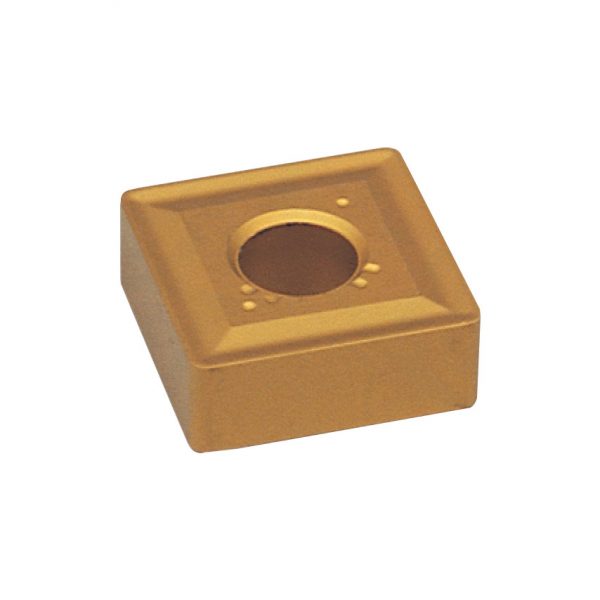

SNMG Turning Inserts Square Insert Insert Grade QX5030 (ISO P20-P40 M20-M30) CVD Coated. – Medium / rough turning and intermediate cutting of steel / stainless steel. Combination of toughest substrate and alumina coating (MT-TiCN + TiC + AL2O3 + TiN) having superior chipping resistance provide wide coverage. Chip Breaker: NM6. Application: Med Cut.
-
- • Manufacturer Grade QX5030
- • Inscribed Circle 12.7mm
- • Insert Style SNMG
- • Corner Radius 0.8
- • Cutting Edge Length 12mm
SNMG 120408-NM6 INSERT GRADE QX5030
-
Manufacturer GradeQX5030
-
Inscribed Circle12.7mm
-
Insert StyleSNMG
-
Corner Radius0.8
-
Cutting Edge Length12mm
-
Thickness4.76mm
-
Cutting DirectionNeutral
-
Finish/CoatingTin-MT-TiCN-Al2O3-TiN
-
ShapeSquare
-
Material ApplicationStainless SteelSteel
-
ISO CutM20 to M30P20 to P40
-
Insert Size1204
-
MaterialCarbide
-
ChipbreakerNM6
-
ISO DesignationSNMG 120408-NM6
-
ISO Category GradeMP
-
Clearance Angle0°
