Description
Description

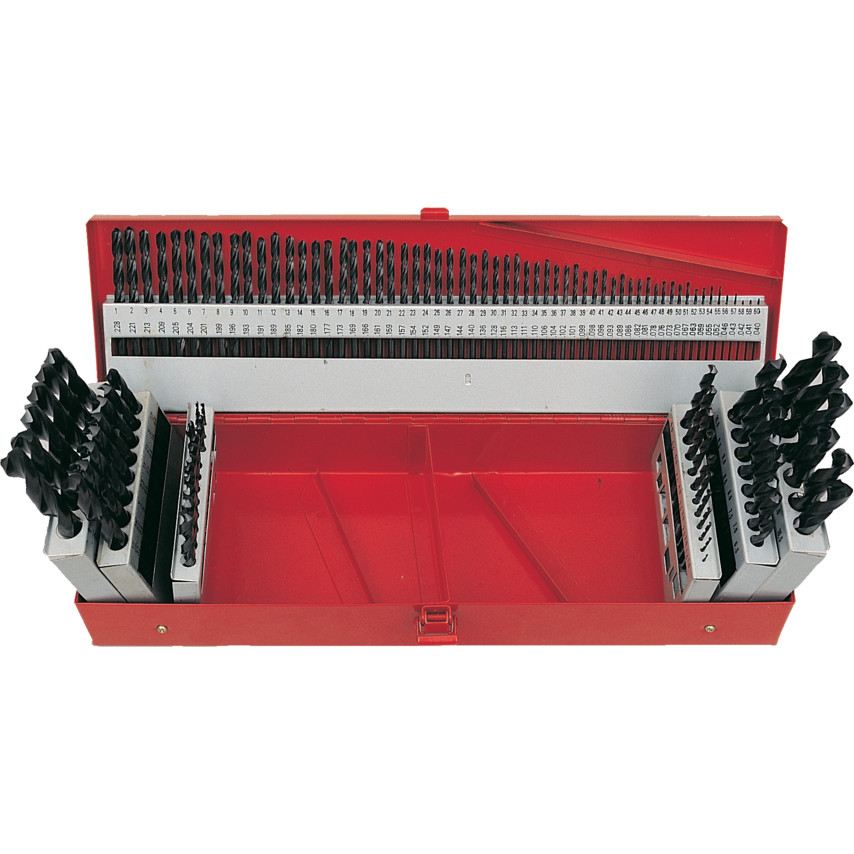

General purpose drills for steels, cast steel, grey cast iron, malleable cast iron, nickel brass, aluminium alloy and graphite. Industrial quality. Ground flute, blue finish. Supplied in indexing metal cases. Point angle: 118, helix angle: normal, web thickness: standard, relief angle: 10-20, tolerance of diameter: h8, tolerance of shank: f11. Manufactured to BS328 : Part 1 DIN 338N & ANSI B94 – 11M. Set contains: Metric:- 1.0, 1.5, 2.0, 2.5, 3.0, 3.5, 4.0, 4.5, 5.0, 5.5, 6.0, 6.5, 7.0, 7.5, 8.0, 8.5, 9.0, 9.5, 10.0, 10.5, 11.0, 11.5, 12.0, 12.5, 13.0mm. Inch:- 1/16″, 5/64″, 3/32″, 7/64″, 1/8″, 9/64″, 5/32″, 11/64″, 3/16″, 13/64″, 7/32″, 15/64″, 1/4″, 17/64″, 9/32″, 19/64″, 5/16″, 21/64″, 11/32″, 23/64″, 3/8″, 25/64″, 13/32″, 27/64″, 7/16″, 29/64″, 15/32″, 31/64″ and 1/2″. Gauge 1-60.
-
- • Case Type Metal Case
- • Flute Construction Ground Flute
- • Finish/Coating Black Oxide
- • Drill Size Included 1 to 60 Inclusive
- • System of Measurement Gauge
SET OF 114 HSS MET/IMP JOBBER DRILLS
-
Case Type
Metal Case -
Flute Construction
Ground Flute -
Finish/Coating
Black Oxide -
Drill Size Included
1 to 60 Inclusive1.0mm to 13.0mm x 0.5mm1/16in to 1/2in x 1/64in -
System of Measurement
GaugeInchMetric -
Drill Length Type
Standard Length -
Number of Pieces
114 -
Standards Met
ANSI B94-11MBS 328DIN 338N -
Cutting Direction
Right Hand -
Material
High Speed Steel
