Description
Description

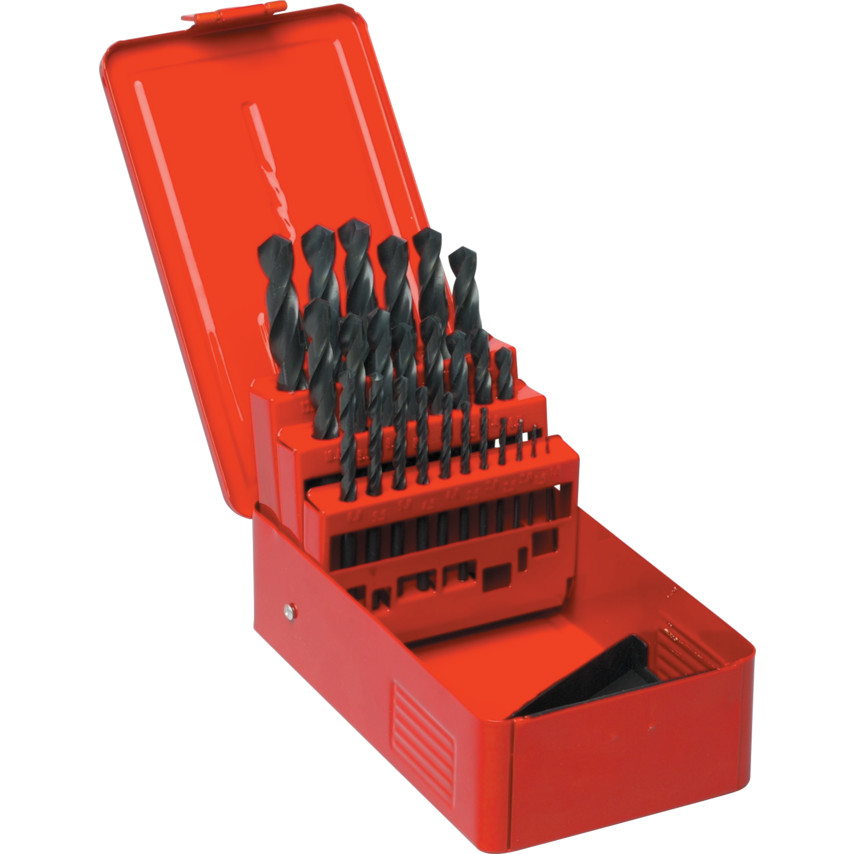

General purpose drills for steels, cast steel, grey cast iron, malleable cast iron, nickel brass, aluminium alloy and graphite. Industrial quality. Ground flute, blue finish. Supplied in indexing metal cases. Point angle: 118, helix angle: normal, web thickness: standard, relief angle: 10-20, tolerance of diameter: h8, tolerance of shank: f11. Manufactured to BS328 : Part 1 DIN 338N & ANSI B94 – 11M. Set contains: 1.0, 1.5, 2.0, 2.5, 3.0, 3.5, 4.0, 4.5, 5.0, 5.5, 6.0, 6.5, 7.0, 7.5, 8.0, 8.5, 9.0, 9.5, 10.0, 10.5, 11.0, 11.5, 12.0, 12.5 and 13.0mm.
-
- • Case Type Metal Case
- • Flute Construction Ground Flute
- • Finish/Coating Black Oxide
- • Drill Size Included 1mm to 13mm x 0.5mm
- • System of Measurement Metric
RILLS 1-13.00mm x 0.5mm
-
Case TypeMetal Case
-
Flute ConstructionGround Flute
-
Finish/CoatingBlack Oxide
-
Drill Size Included1mm to 13mm x 0.5mm
-
System of MeasurementMetric
-
Maximum Drill Size13mm
-
Drill Length TypeStandard Length
-
Size Increment0.5mm
-
Number of Pieces25
-
Standards MetANSI B94-11MBS 328DIN 338N
-
Cutting DirectionRight Hand
-
Minimum Drill Size1mm
-
MaterialHigh Speed Steel
