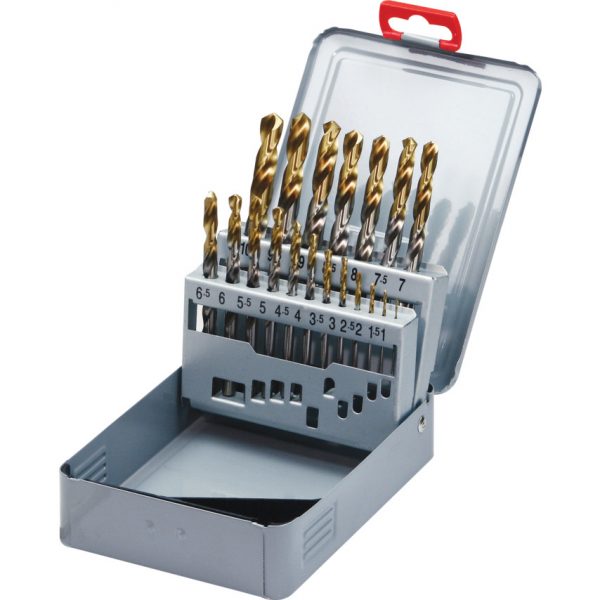

19 & 25 Piece Metric Sets Bright body with TiN coating on working part. For drilling in steel, cast steel alloyed and non-alloyed, grey cast iron, graphite and malleable cast iron. Point angle: 118°, helix angle: normal, web thickness: standard, relief angle: normal, tolerance of diameter: h8, tolerance of shank: f11. Manufactured to BS 328, DIN 338. 19 Piece Metric Set Contents: 1-10.00mm x 0.5mm. 25 Piece Metric Set Contents: 1-13.00mm x 0.5mm.
-
- • Case Type Metal Case
- • Flute Construction Ground Flute
- • Finish/Coating Bright
- • Drill Size Included 1mm to 10mm
- • System of Measurement Metric
- Further Information
1-10.00mm x 0.5mm HSS-TIN DRILLS (SET-19)
-
Case Type
Metal Case -
Flute Construction
Ground Flute -
Finish/Coating
BrightTiN (Tip) -
Drill Size Included
1mm to 10mm -
System of Measurement
Metric -
Maximum Drill Size
10mm -
Drill Length Type
Standard Length -
Size Increment
0.5mm -
Number of Pieces
19 -
Standards Met
BS 328DIN 338 -
Cutting Direction
Right Hand -
Minimum Drill Size
1mm -
Material
High Speed Steel
