Description
Description

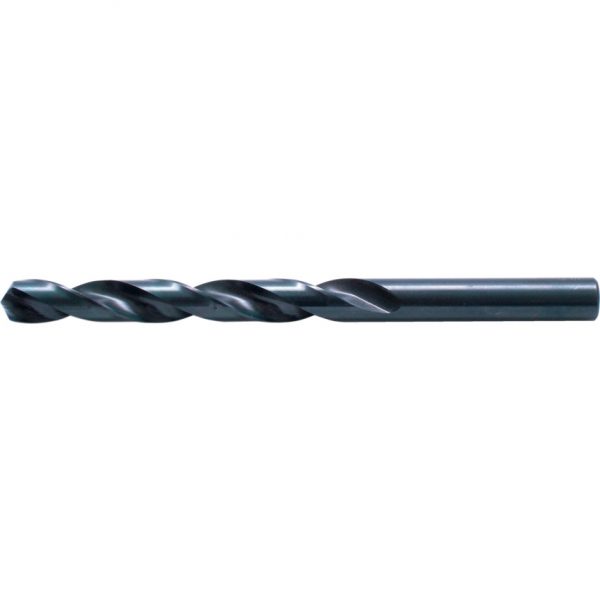

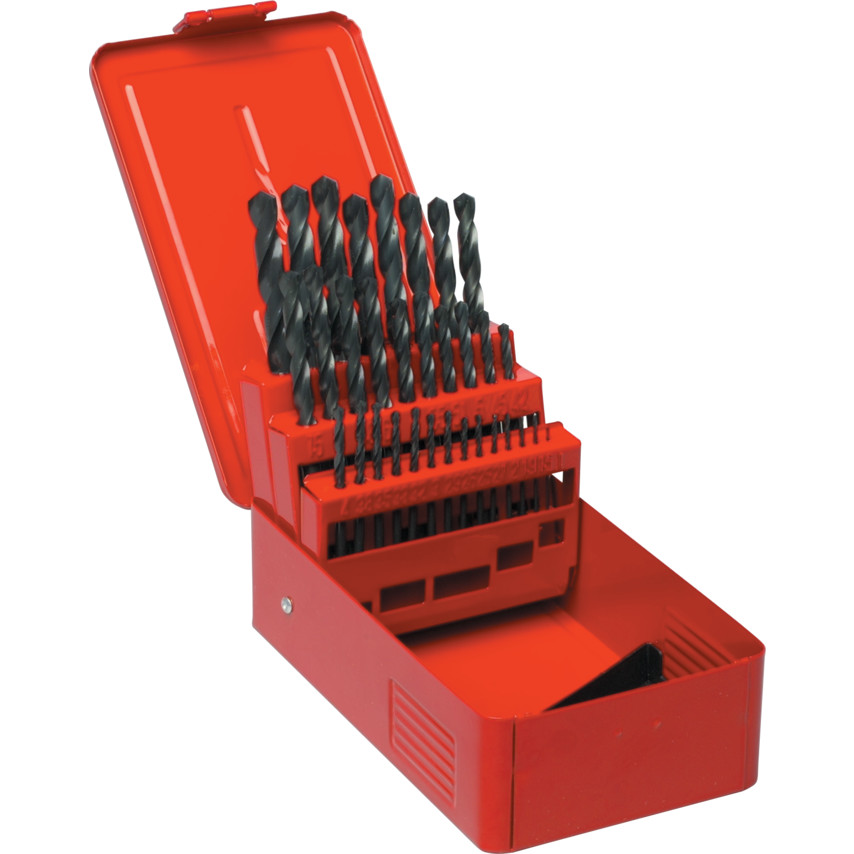

Sherwood Jobber drills are general purpose drills for steels, cast steel, grey cast iron, malleable cast iron, nickel brass, aluminium alloy and graphite. Industrial quality. Ground flute, blue finish. Supplied in indexing metal cases. Point angle: 118, helix angle: normal, web thickness: standard, relief angle: 10-20, tolerance of diameter: h8, tolerance of shank: f11. Manufactured to BS328 : Part 1 DIN 338N & ANSI B94 – 11M. Set contains (includes Tapping sizes 1.9 to 10.2): 1.0, 1.5, 1.9, 2.0, 2.1, 2.5, 2.6, 2.9, 3.0, 3.2, 3.3, 3.5, 3.8, 4.0, 4.2, 4.5, 5.0, 5.1, 5.5, 6.0, 6.5, 6.8, 7.0, 7.5, 7.9, 8.0, 8.5, 9.0, 9.5, 10.0, 10.2 and 10.5mm.
-
- • Case Type Metal Case
- • Flute Construction Ground Flute
- • Finish/Coating Black Oxide
- • Drill Size Included 1.0mm to 10.5mm x 0.5mm
- • System of Measurement Metric
SET OF 32 HSS DRILLS 1-10.50mm x 0.5mm
-
Case Type
Metal Case -
Flute Construction
Ground Flute -
Finish/Coating
Black Oxide -
Drill Size Included
1.0mm to 10.5mm x 0.5mm -
System of Measurement
Metric -
Maximum Drill Size
10.5mm -
Drill Length Type
Standard Length -
Size Increment
0.5mm -
Number of Pieces
32 -
Standards Met
ANSI B94-11MBS 328DIN 338N -
Cutting Direction
Right Hand -
Minimum Drill Size
1mm -
Material
High Speed Steel
