DP2210 10mm Jacobs chuck, stall resistant, heavy duty bearings, 1/2″ HP motor, 3/8″ – 24 spindle thread. Specifications: Air inlet thread: 1/4″ NPT. Minimum air hose size (ID): 3/8″(10mm). Chuck capacity: 10mm. Spindle thread: 3/8″ – 24. Air pressure: 90PSI/6.3Bar. Air consumption: 4CFM* (144 ltr/min). Sound pressure level: 87dBA. Sound power level: 103dBA. Vibration level: 1.5m/s2. Overall length: 180mm. *Based on a 15 second cycle per minute average use.
-
- • Overall Width 44mm
- • Air Consumption 4CFM
- • Maximum No Load Speed 2200rpm
- • Horsepower 0.5hp
- • Reversibility Non-reversible

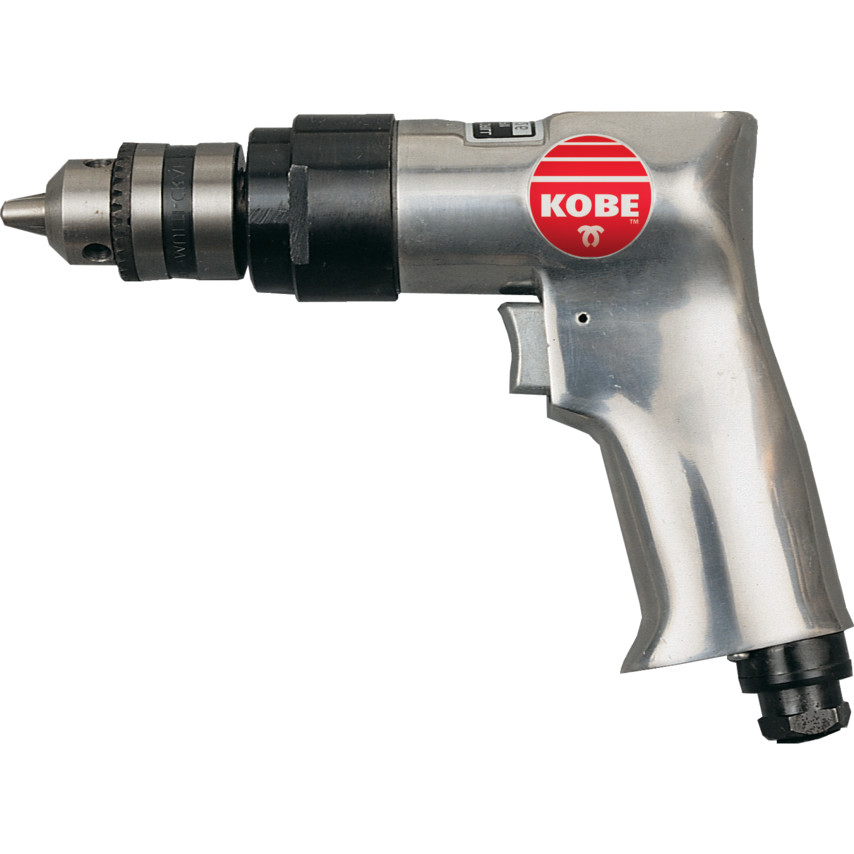

DP2210 10mm PISTOL DRILL
-
Overall Width
44mm -
Air Consumption
4CFM -
Maximum No Load Speed
2200rpm -
Horsepower
0.5hp -
Reversibility
Non-reversible -
Special Features
Ergonomic HandleHeavy Duty Bearings -
Overall Length
180mm -
Compatible Hose Inner Diameter
10mm -
Drill Orientation
Pistol -
Overall Height
145mm -
Throttle Features
Teasing Throttle -
Chuck Capacity
1 to 10mm -
Minimum Chuck Capacity
1mm -
Maximum Chuck Capacity
10mm -
Includes
Chuck Key -
Air Pressure
90PSI -
Chuck Type
Keyed -
Product Number
DP2210 -
Air Inlet Size
1/4 NPT -
Weight
1.1kg -
Workplace Application
IndustrialProduction
