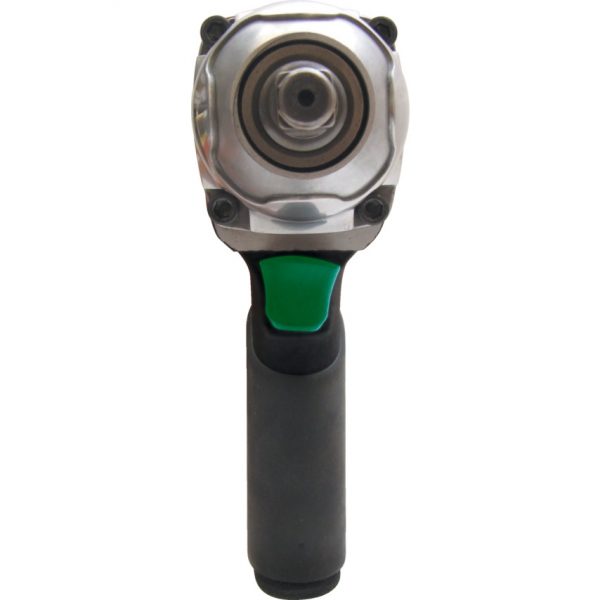

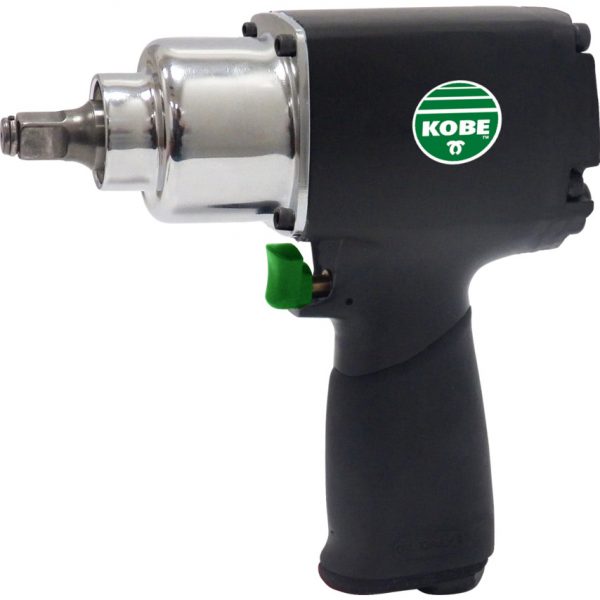

G7321 – 3/8″ Impact Wrench Suitable for light workshop and garage use. Twin hammer mechanism with a 4 point adjustable air (speed) forward/reverse speed regulator. Ergonomic and comfortable handle grip with vibration dampening a fixed inlet and exhaust. One finger stop/start trigger operation. Downward facing external exhaust in handle. Square drive size: 3/8″ Free speed: position 1: 8,000 rpm, position 2: 9,100 rpm, position 3: 10,100 rpm. Reverse:10,200 rpm. Maximum torque: 393 Nm (rev). Working torque: 339 Nm (fwd). Recommended air pressure: 6.2 bar (90psi). Air consumption: 3.4 cfm* Air inlet thread: 1/4″ NPT. Minimum air hose size (ID): 10mm (3/8″). Overall length: 160 mm.
-
- • Overall Height 180mm
- • Blows per Minute N/Abpm
- • Model Number G7321
- • Actual Air Consumption 3.4 CFM
- • Overall Width 50mm
-
Overall Height
180mm -
Blows per Minute
N/Abpm -
Model Number
G7321 -
Actual Air Consumption
3.4 CFM -
Overall Width
50mm -
Air Inlet Size
1/4 NPT -
Minimum Compatible Hose Size
10mm -
Overall Length
160mm -
Torque Range
(fwd) – 339Nm -
Noise/ Vibration Information
Sound Power 101 db(A) EN ISO15744:2002Sound Pressure 88 db(A) EN ISO15744:2002Vibration Level 4.9 m/s² EN28927-2 -
Weight
1.39kg -
Square Drive Size
3/8in. -
No Load Speed
10,200rpm -
Maximum Torque
(rev) 393Nm
