Description
Description

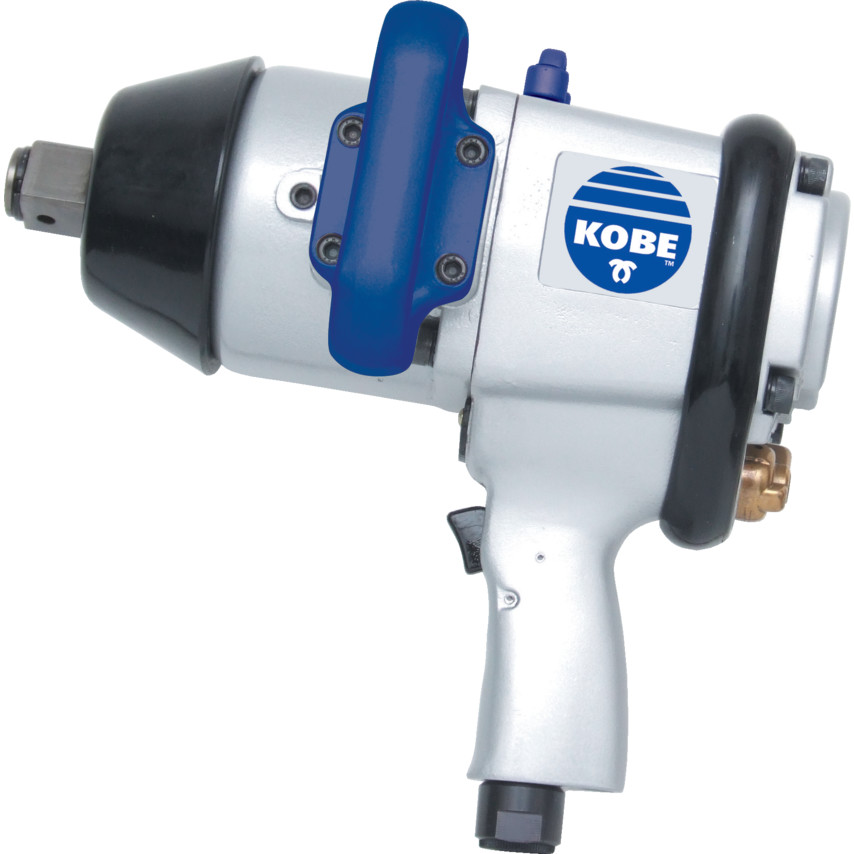

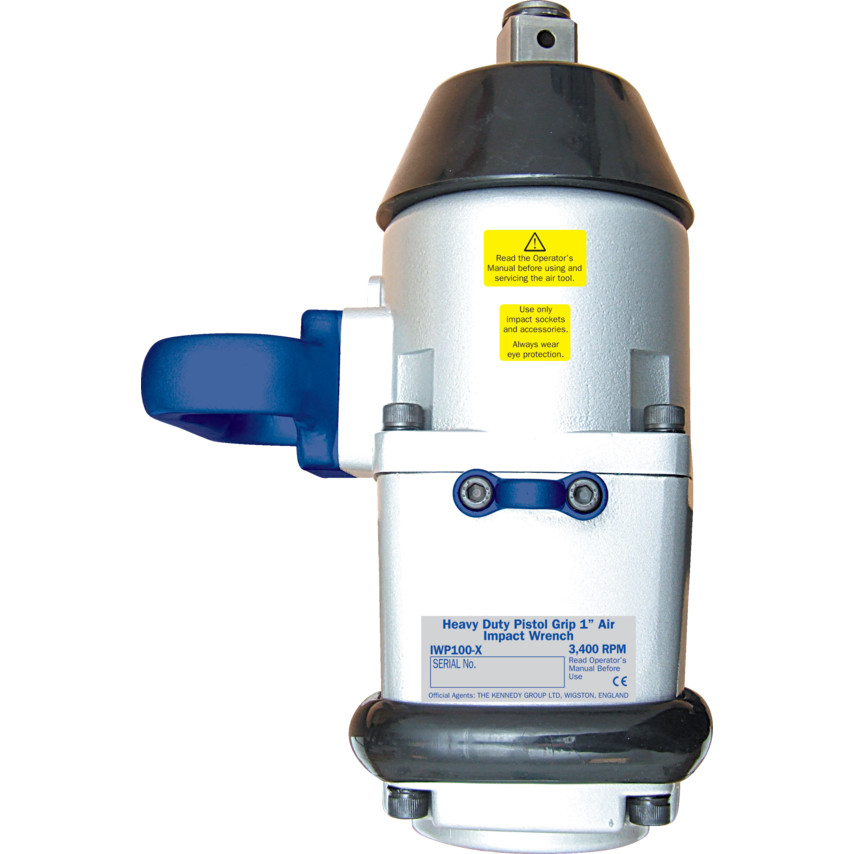

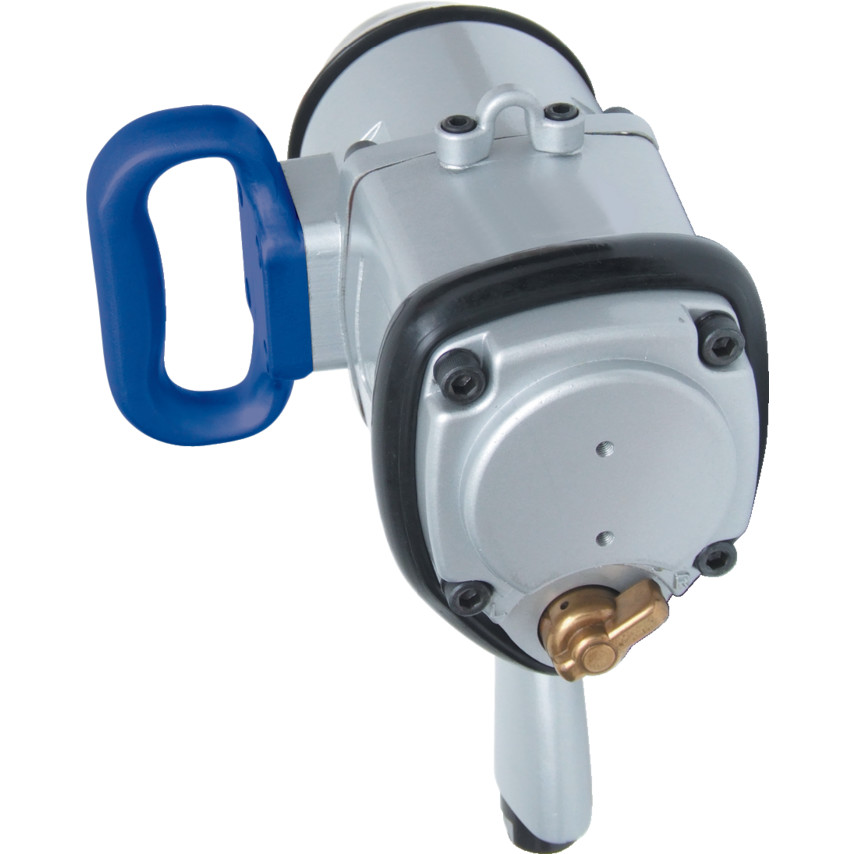

KPI295 – 1″ Pistol Grip Air Impact Wrench Suitable for industrial and commercial production and assembly applications. Front or rear mounting spring balance loop. Forward/reverse switch and three position power regulator. Forward facing exhaust. Oiling points for daily maintenance. Free speed: 3,400rpm. Final drive: 1″ Working torque: 2,170Nm (1600lb/ft). Maximum torque: 2,440Nm (1800lb/ft). Air inlet thread: 1/2″ NPT. Minimum air hose size (ID): 1/2″ (13mm). Air pressure: 6.3bar/90psi. Air consumption: 0.8cfm. Sound pressure level: 87dBA. Vibration level: 5.9m/s2. Overall length: 295mm.
-
- • Overall Height 270mm
- • Blows per Minute N/Abpm
- • Model Number KPI295
- • Actual Air Consumption 5.6 CFM
- • Overall Width 120mm
1″ DRIVE H/D PISTOL GRIP AIR IMPACT WRENCH
-
Overall Height270mm
-
Blows per MinuteN/Abpm
-
Model NumberKPI295
-
Actual Air Consumption5.6 CFM
-
Overall Width120mm
-
Air Inlet Size1/2 NPT
-
Minimum Compatible Hose Size1/2″/13mm
-
Overall Length290mm
-
Torque Range(fwd) – 2,240Nm
-
Weight9.70kg
-
Square Drive Size1in.
-
No Load Speed3,400rpm
-
Maximum Torque(rev) 2,712Nm
