Description

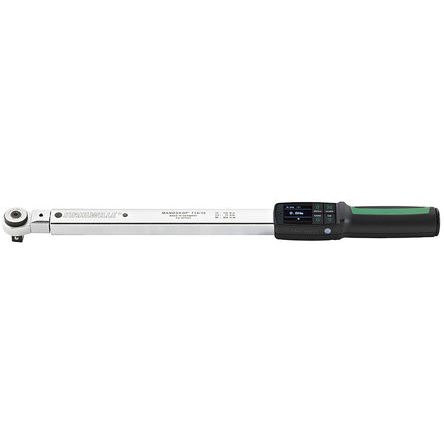

MANOSKOP® 714 R tightening angle torque wrenches with reversible ratchet insert tool
– 4 measuring modes (torque, angle, torque backed up by angle, angle backed up by torque)
– high-definition colour display with additional side-mounted indicator lamps
– freely configurable menu structure
– optionally: Li-ion battery No 7195-2 and charger No 7160
– 3 function modes: cut-out, peak hold (indicating mode with peak value) and track (indicating mode with current value)
– Micro USB interface
– bayonet connection for battery compartment
– QuickRelease safety lock change system for insert tools
– angle-controlled measurement without a reference arm
– Data storage (<_ 2500 tightening jobs)
– as many as 200 joints can be programmed in up to 25 preset sequences.
– different tolerance limits can be set for each joint
– acoustic and visual assessment of the joint
– rapid, accurate setting via keypad
– the automatic keypad lock prevents inadvertent changes
– overload protection by means of acoustic and visual signals and a fail-safe system (clockwise)
1 automatic notification of the next calibration date,
either by the number of joints or the time interval
1 fully automated calibrating and adjusting using
the perfectControl calibrating and adjusting unit
No 7794-2 (torque) or 7794-3 (torque and angle)
1 units of measure: N·m, ft·lb, in·lb.
1 tightening torque is automatically corrected if a
deviating extension is entered
1 immediately reusable after release
1 clockwise and anticlockwise tightening – it may
be necessary to refit the insert tool rotated
through 180° for anticlockwise tightening in the
cut-out mode
1 tactile and acoustic trigger signal.
1 torque and angle are simultaneously visible
1 all readings are independent of the point of
application of force (with sizes 1, 2 and 4)
1 safe handling due to ergonomically designed
handle (resistant to oils, grease, fuels, brake fluid
and Skydrol)
1 2 certificates (torque, angle)
1 in sturdy plastic case (size 40-100 in steel case)
1 design patent, patent
1 supplied with SENSOMASTER Basic software,
USB cable, 4 AAA/LR03 micro-batteries, 1.5 V.
AAA, 1.2 V, micro NiMH rechargeable batteries
can be used
1 display resolution, angle 0.1°
1 display deviation value, angle ±1%, ±1 digit
1 display resolution, torque d 60 N·m: 0.01 N·m;
> 60 N·m: 0.1 N·m
1 display deviation value, torque ±2%, ±1 digit
– 4 measuring modes (torque, angle, torque backed up by angle, angle backed up by torque)
– high-definition colour display with additional side-mounted indicator lamps
– freely configurable menu structure
– optionally: Li-ion battery No 7195-2 and charger No 7160
– 3 function modes: cut-out, peak hold (indicating mode with peak value) and track (indicating mode with current value)
– Micro USB interface
– bayonet connection for battery compartment
– QuickRelease safety lock change system for insert tools
– angle-controlled measurement without a reference arm
– Data storage (<_ 2500 tightening jobs)
– as many as 200 joints can be programmed in up to 25 preset sequences.
– different tolerance limits can be set for each joint
– acoustic and visual assessment of the joint
– rapid, accurate setting via keypad
– the automatic keypad lock prevents inadvertent changes
– overload protection by means of acoustic and visual signals and a fail-safe system (clockwise)
1 automatic notification of the next calibration date,
either by the number of joints or the time interval
1 fully automated calibrating and adjusting using
the perfectControl calibrating and adjusting unit
No 7794-2 (torque) or 7794-3 (torque and angle)
1 units of measure: N·m, ft·lb, in·lb.
1 tightening torque is automatically corrected if a
deviating extension is entered
1 immediately reusable after release
1 clockwise and anticlockwise tightening – it may
be necessary to refit the insert tool rotated
through 180° for anticlockwise tightening in the
cut-out mode
1 tactile and acoustic trigger signal.
1 torque and angle are simultaneously visible
1 all readings are independent of the point of
application of force (with sizes 1, 2 and 4)
1 safe handling due to ergonomically designed
handle (resistant to oils, grease, fuels, brake fluid
and Skydrol)
1 2 certificates (torque, angle)
1 in sturdy plastic case (size 40-100 in steel case)
1 design patent, patent
1 supplied with SENSOMASTER Basic software,
USB cable, 4 AAA/LR03 micro-batteries, 1.5 V.
AAA, 1.2 V, micro NiMH rechargeable batteries
can be used
1 display resolution, angle 0.1°
1 display deviation value, angle ±1%, ±1 digit
1 display resolution, torque d 60 N·m: 0.01 N·m;
> 60 N·m: 0.1 N·m
1 display deviation value, torque ±2%, ±1 digit
