Description
Description
Measures the root tangent length of spur and helical gears. Measurable gear pitch: 0.5 – 6 module. Measuring force: 3 – 8 N Disc diameter: 20mm/0.787″. Accuracy: ±4 µm/0.0002″ Instrument error: 0 – 50mm: 4μm. 50 – 100mm: 6μm. Parallelism: 4 µm/0.00016″ for models up to 50 mm/2″ (4+L/50) µm for models up to 100 mm L = max. range (mm) 0.00024″ for models up to 4″ Flatness: 1µm. L = maximum measuring length.
-
- • Resolution 0.001mm
- • Weight Each 290g
- • Data Output SPC
- • System of Measurement Imperial
- • IP Rating IP65

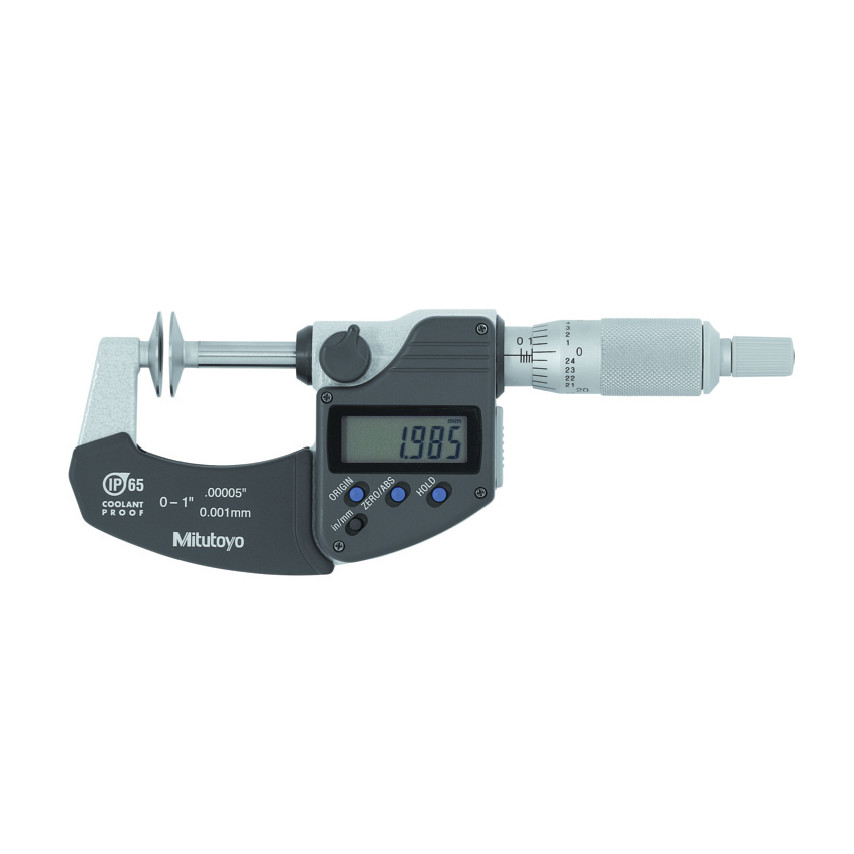

323-350-30 DIGIMATIC DISC MICROMETER
-
Resolution0.001mm
-
Weight Each290g
-
Data OutputSPC
-
System of MeasurementImperialMetric
-
IP RatingIP65
-
Measuring Range0 – 25mm
-
Includes1 BatteryBoxKeySetting standard (from 25 mm upward)
-
Additional Features0.7mm Edge Thickness to Enter Narrow Recesseswith Ratchet Stop for Constant Force
-
Accuracy+/-0.004mm
-
Product Number323-350-30
