Description
Description

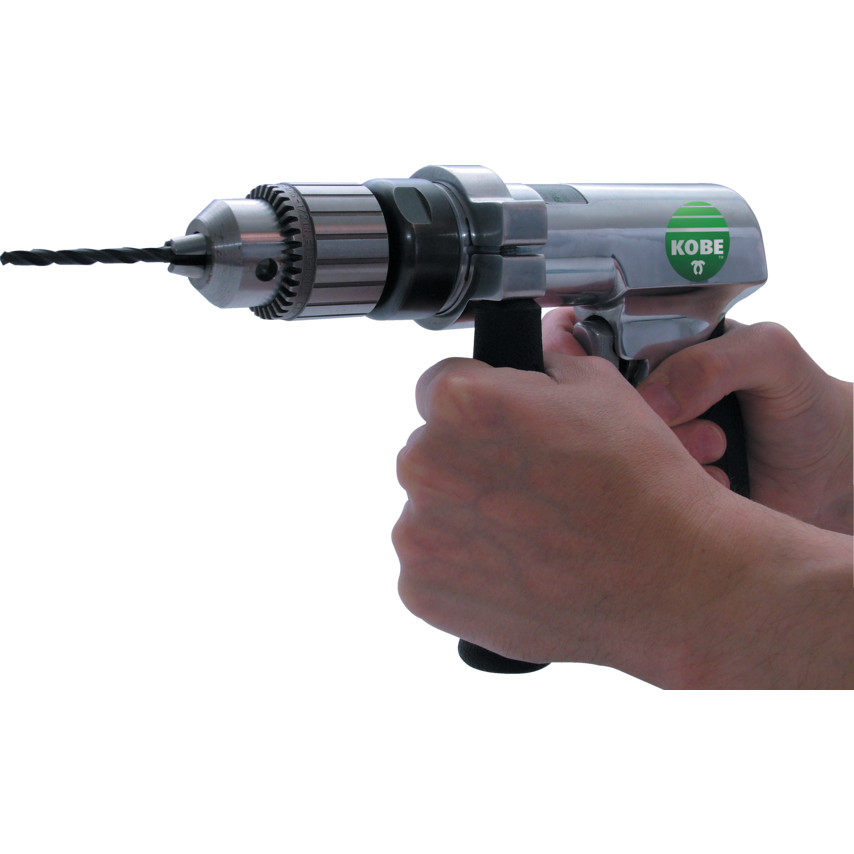

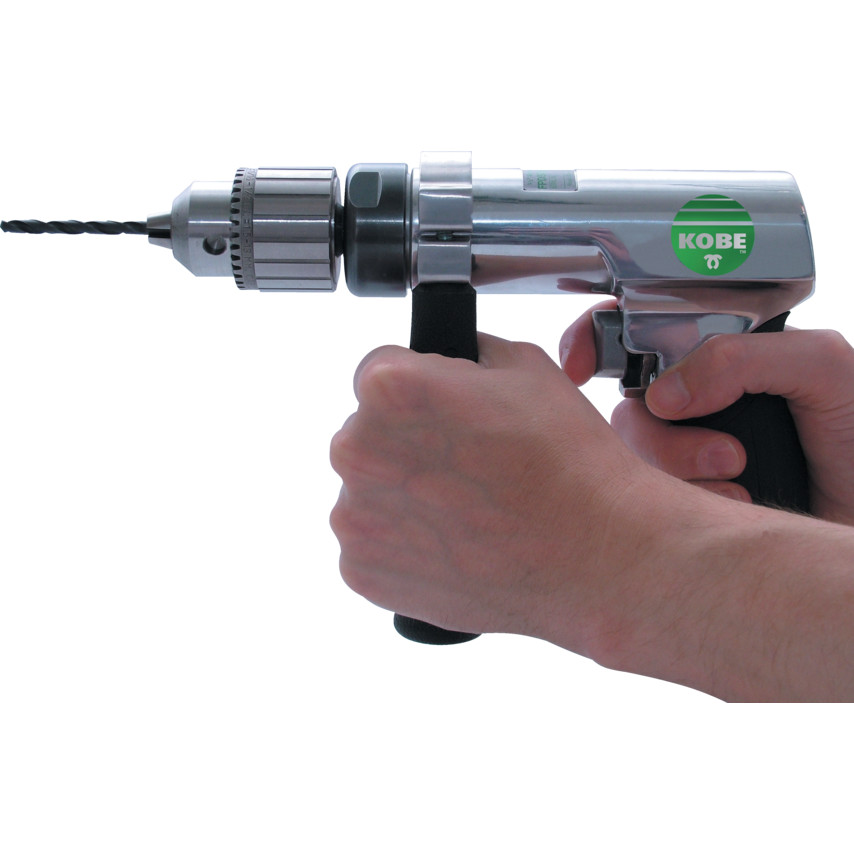

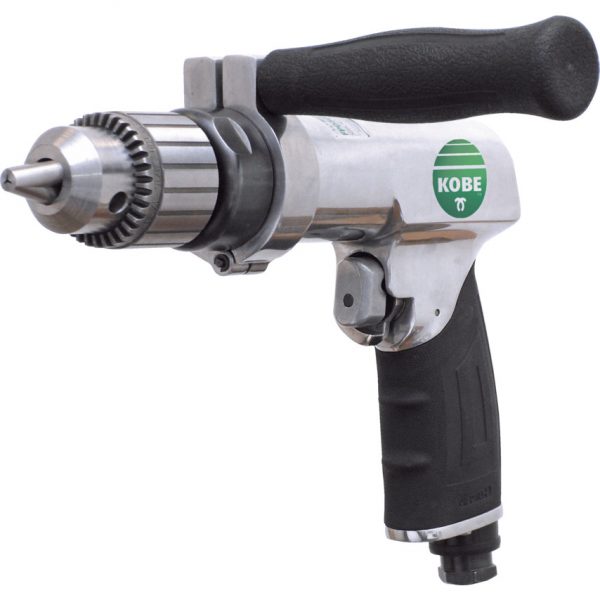

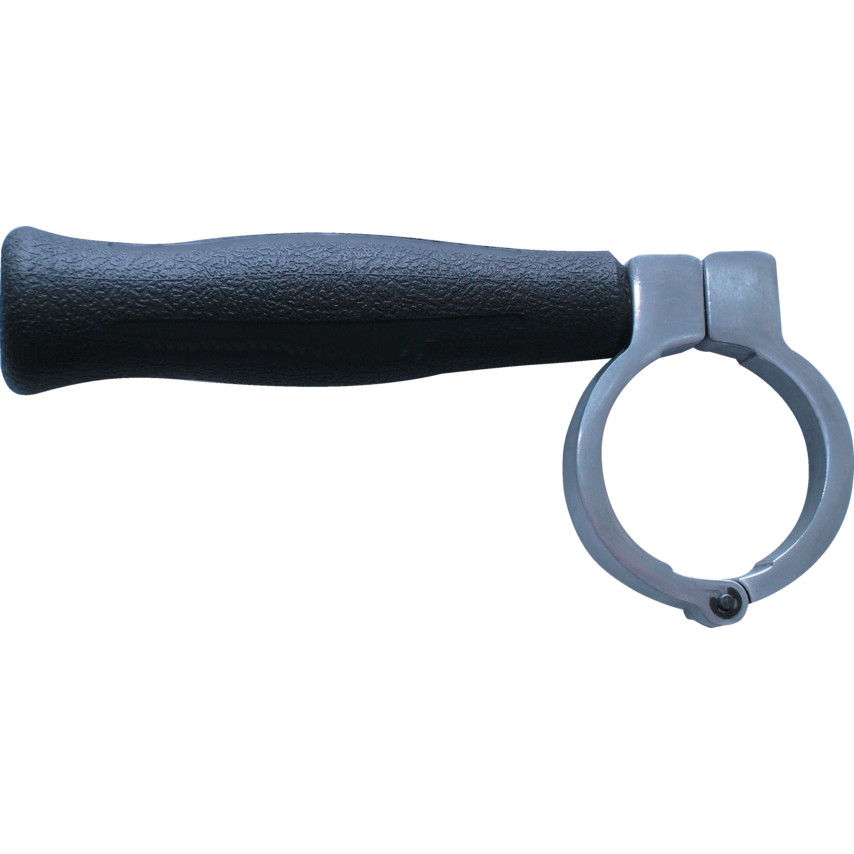

FPD500 Suitable for high torque drilling applications as well as screwdriving, hole sawing and cylinder honing. Rubber handle provides grip and operator comfort. 1/2″ chuck. Adjustable side handle. Short gear case design. Heavy duty gearing system with oil-less bushing. Spring loaded rotor vanes. Rear exhaust. Ball bearing construction for a long tool life. Spindle thread: 3/8″ – 24. Air inlet thread: 1/4″ NPT. Minimum air hose size (ID): 3/8″ (10mm). Air pressure: 90psi/6.2bar. Air consumption: 3.65cfm*. Sound pressure level: 95dBA. Sound power level: 100dBA. Vibration level: 0.4m/s2. Overall length: 240mm. *Based on a 15 second cycle per minute average use.
-
- • Overall Width 47mm
- • Air Consumption 3.65CFM
- • Maximum No Load Speed 500rpm
- • Horsepower 0.45hp
- • Reversibility Reversible
FDP500 REVERSIBLE PISTOL DRILL
-
Overall Width
47mm -
Air Consumption
3.65CFM -
Maximum No Load Speed
500rpm -
Horsepower
0.45hp -
Reversibility
Reversible -
Special Features
Ergonomic HandleSuitable for Screwdriving -
Overall Length
240mm -
Compatible Hose Inner Diameter
10mm -
Drill Orientation
Pistol -
Overall Height
170mm -
Throttle Features
Teasing Throttle -
Chuck Capacity
1.5 to 13mm -
Minimum Chuck Capacity
1.5mm -
Maximum Chuck Capacity
13mm -
Includes
Chuck KeyOperator Friendly Composite gripSide Handle -
Air Pressure
90PSI -
Chuck Type
Keyed -
Product Number
FPD500 -
Air Inlet Size
1/4 NPT -
Weight
1.8kg -
Workplace Application
IndustrialProduction
