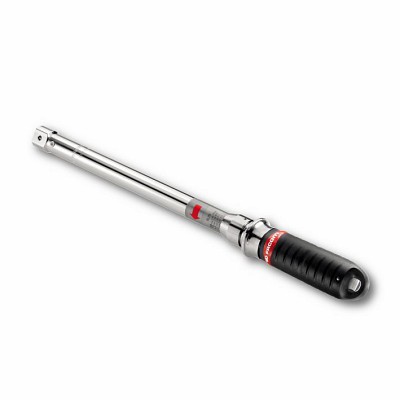

Description
– Accuracy ±2% of the preset torque value except U08114602 (±4%) and U08114601 (±6%)
– Reliability of mechanism: 50.000 cycles (wrenches up to 200 Nm)
– One-way wrenches usable for unscrewing by reversing the bits
– To be used with 9×12 or 14×18 mm fittings
– Numbered wrenches supplied with ISO 6789 calibration certificate
– Supplied in a plastic box
Features
Family details
| Code | Capacity Nm | Female square drive mm | Resolution Nm | L mm |
Quantity for packaging
|
|---|---|---|---|---|---|
| U08114601 | 1÷5 | 9×12 | 0,05 | 185 | 1 |
| U08114602 | 5÷25 | 9×12 | 0,10 | 271 | 1 |
| U08114603 | 10÷50 | 9×12 | 1,00 | 357 | 1 |
| U08114605 | 20÷100 | 9×12 | 1,00 | 437 | 1 |
| U08114606 | 40÷200 | 14×18 | 1,00 | 515 | 1 |
| U08114607 | 70÷350 | 14×18 | 2,00 | 725 | 1 |
