Description

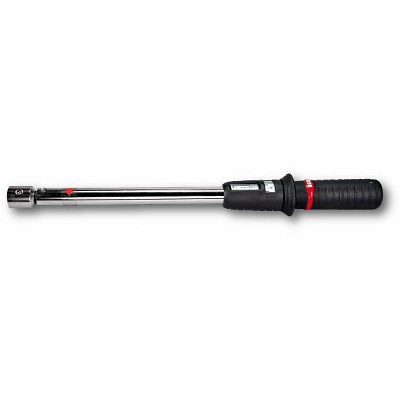

- Adjustable torque model for use in combination with fittings from the 811-series
- For clockwise and counterclockwise tightening by turning the fittings 180°
- 9×12 or 14×18 mm fittings
- Accuracy ± 4% of the preset torque value
- Readings in Nm
- Sensible and audible alarm on reaching preset torque value
- Automatic resetting on pressure release after disengagement
- Supplied with test certificate
Features
Family details
| Code | Capacity Nm | Resolution Nm |
Male rectangular drive mm
|
L mm |
Quantity for packaging
|
|---|---|---|---|---|---|
| U08114000 | 1÷5 | 0,05 | 9×12 | 185 | 1 |
| U08114001 | 5÷25 | 0,05 | 9×12 | 270 | 1 |
| U08114002 | 10÷50 | 0,25 | 9×12 | 335 | 1 |
| U08114003 | 20÷100 | 0,25 | 9×12 | 395 | 1 |
| U08114004 | 40÷200 | 0,5 | 14×18 | 460 | 1 |
| U08114005 | 68÷340 | 1 | 14×18 | 615 | 1 |
