Description
Description

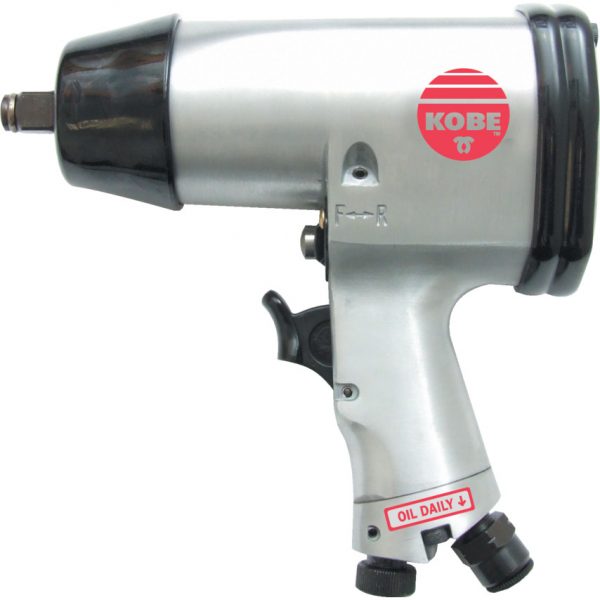

IWS500 Kit supplied complete in robust blow-moulded case. Includes: 1/2″ impact wrench . 10 metric sockets: 9, 10, 11, 12, 13, 14, 17, 22, 24 and 27mm. Threaded tailpiece, in-line mini-oiler and oil bottle. One piece aluminium housing, 10 position power regulator, thumb switch for reversing, 1/4″ NPT air inlet thread for 10mm air hose, 90psi air pressure, 300ft/lbs torque, 4cfm* air consumption, 16mm bolt capacity. Sound pressure level: 93dBA Sound Power: N/A dBA Vibration: 1.21m/s2 Overall length: 191mm. *Based on a 15 second cycle per minute average use.
-
- • Overall Height 190mm
- • Blows per Minute N/Abpm
- • Model Number IWS500
- • Actual Air Consumption 3.5 CFM
- • Overall Width 65mm
IWS500 1/2″ IMPACT WRENCH KIT
-
Overall Height
190mm -
Blows per Minute
N/Abpm -
Model Number
IWS500 -
Actual Air Consumption
3.5 CFM -
Overall Width
65mm -
Air Inlet Size
1/4 NPT -
Minimum Compatible Hose Size
10mm -
Overall Length
190mm -
Noise/ Vibration Information
Sound Pressure 88 db(A) -
Weight
4.30kg -
Square Drive Size
1/2in. -
No Load Speed
8,400rpm -
Maximum Torque
380Nm
