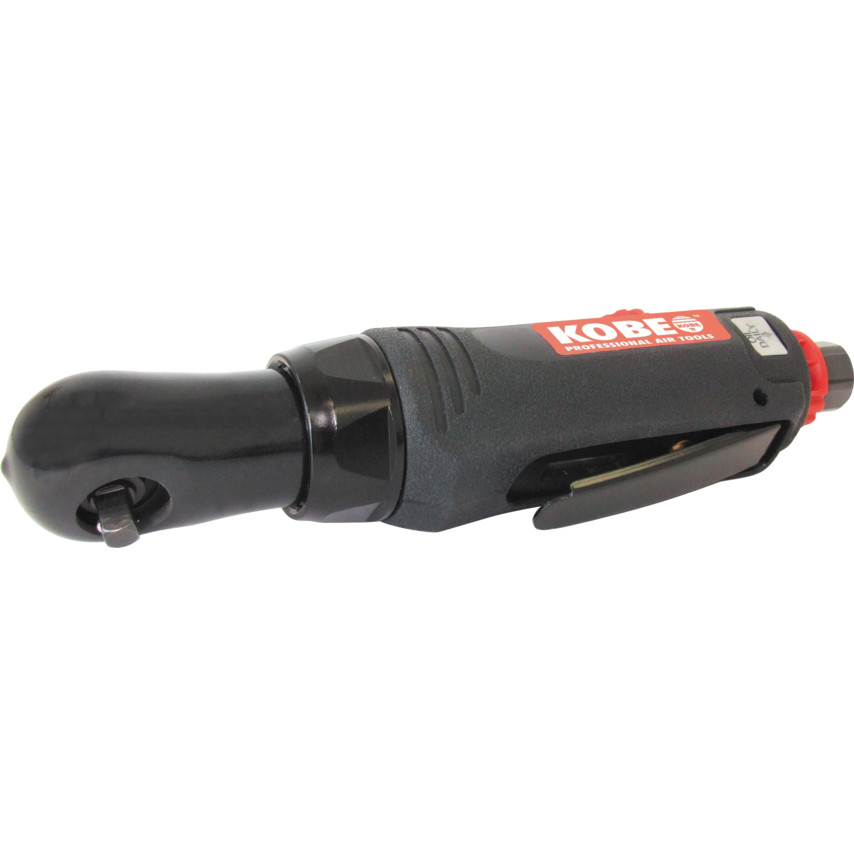

R7722 – 1/4″ Speed Ratchet Suitable for the removal and installation of threaded fasteners. Reversible hardened steel 1/4″ square drive. Short body length allowing access into hard to reach areas. Planetary gears for longer life and smoother running. Low profile throttle for precise speed control. Rotating air inlet to prevent the air hose tangling. Drive size: 1/4″ Free speed: 200 rpm. Recommended air pressure: 6.2 bar/90psi. Average air consumption: *1.88 l/s Working torque range: 7 ~ 27 Nm Air inlet thread: 1/4″ NPT. Minimum air hose size (ID): 10mm (3/8″). Sound pressure level: 80 dBA. Sound power level: 88 dBA. Vibration level: 1.8 m/s2. Overall length: 200 mm. *Based on a 15 second cycle per minute average use.
-
- • Noise/ Vibration Information Sound Power 88 db(A) EN ISO 15744:2002
- • Air Inlet Size 1/4 NPT
- • Average Air Consumption 1.88 L/s
- • Square Drive 1/4in.
- • Compatible Hose Inner Diameter 10mm
R7722 1/4″ SPEED RATCHET
-
Noise/ Vibration InformationSound Power 88 db(A) EN ISO 15744:2002Sound Pressure 80 db(A) EN ISO 15744:2002Vibration Level 1.8 m/s² EN 28927-2
-
Air Inlet Size1/4 NPT
-
Average Air Consumption1.88 L/s
-
Square Drive1/4in.
-
Compatible Hose Inner Diameter10mm
-
Torque Range7 – 27Nm
-
Overall Length200mm
-
No Load Speed200rpm
-
Maximum Torque27Nm
-
Model NumberR7722
-
Air Pressure90PSI
-
Weight0.65kg
